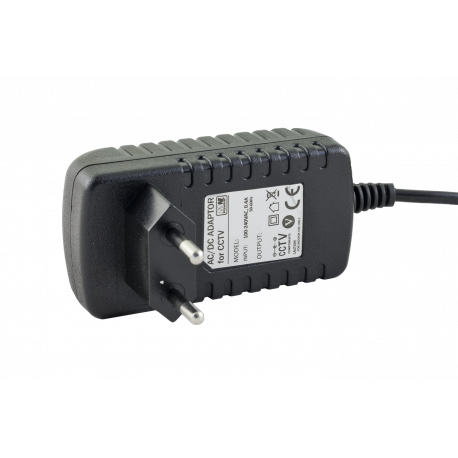

Switch-mode plug-in power supply 9V 1A 057284 EB0909 MPL MW POWER

Product description

This is a classic model of mains charger. This charger is used to power internal batteries in electronic devices such as led lights. It is only important to connect the charger plug to the input properly. An important note is that if the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current.

This is a very high quality product both mechanically and externally. The product is made of high quality plastic. As a result, it will give you great service for many years. The charger is powered by a maximum current voltage of 230V.

Technical specifications:

• Protections: Short-circuit / Overload
• Free air circulation cooling
• II Immunity class
• Low power consumed in no-load condition < 0.3W
• Low price
• DC output voltage: 9V
• Rated current [A]: 1
• Voltage adjustment range: None
• Ratedpower [W]: 9
• AC input voltage: 90~264 VAC
• Frequency: 47~63Hz
• Efficiency: 76%
• Permissible temp. range: -5°C ~ +40°C
• Overload protection: yes
• MTBF: 30 ,000 hours
• Enclosure: Plastic
• Cooling: Passive
• Length [mm]: 70
• Width [mm]: 30
• Height [mm]: 79
• Weight [kg]: 0.09
• Plug type: 2.1 / 5.5 mm
