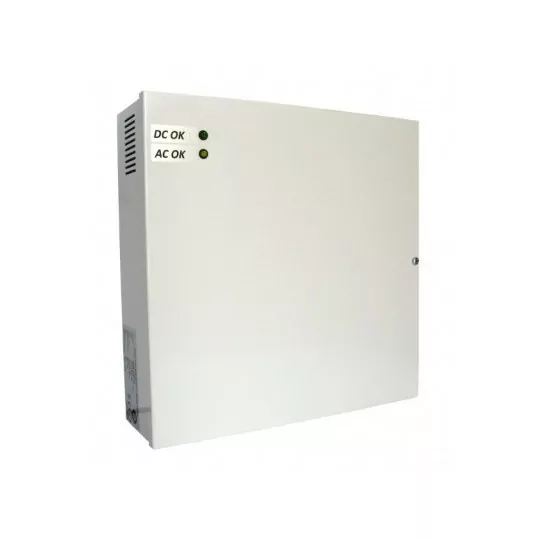

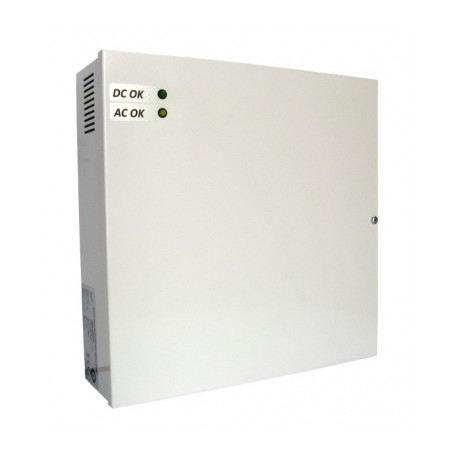

Buffer power supply in the cabinet ZBF-24V-1,6A-7Ah EKO x2 battery MPL

Product description

Buffer power supplies are one of the basic elements of electrical equipment. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. In addition, the power supply is housed in a surface-mounted box. This makes it resistant not only to the aforementioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

The versatility and high level of security provided by the hermetic power supply makes it suitable for powering lighting. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it. Thanks to the use of such a power supply, the receiver is protected from both short-term (seconds, minutes) and longer-term interruptions. The backup time depends on the battery capacity used, and the current consumption of the load

Technical data:

• universal application,
• constant output voltage level of 27.6V (DC) during the presence of the power grid,
• voltage value in the range of 21V-27.6V (DC) during the disappearance of the power grid,
• dedicated cooperation with gel or AGM batteries,
• cooperation with 12V 7Ah batteries,
• operation status signaling: AC OK, DC OK; LEDs brought outside,
• protections: overload, short circuit, over voltage,
• battery battery protection against deep discharge - RGR disconnector
• expandable with modules: relay signaling, tamper contact, output voltage divider with protection.
