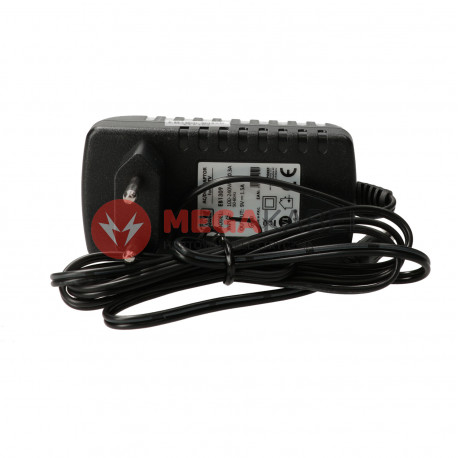

EB1309 9V 1.5A plug-in power supply MWPOWER

Product description

This is a classic model of mains charger. This charger is used to power internal batteries in electronic devices such as led lights. It is only important to connect the charger plug to the input properly. An important note is that if the power supply is designed for continuous operation (24H), the rated current of the power supply should not exceed 80% of the maximum current.

This is a very high quality product both mechanically and externally. The product is made of high quality plastic. As a result, it will give you great service for many years. The charger is powered by a maximum current voltage of 230V.

Technical data:

• Input voltage: 230V AC
• Voltage frequency range: 47 ÷ 63Hz
• Efficiency (typical): 78.5%
• Input current: 0.3A/115VAC, 0.15A / 230VAC
• No-load power (max.): 0.3W
• Rated voltage: 9VDC
• Rated current: 1.5A
• Rated power: 13.5W
• Overload protection: YES
• Short circuit protection: YES
• Operating temperature: -5°C ÷ 40°C
• Operating humidity: 10 ÷ 90% relative humidity(non-condensing)

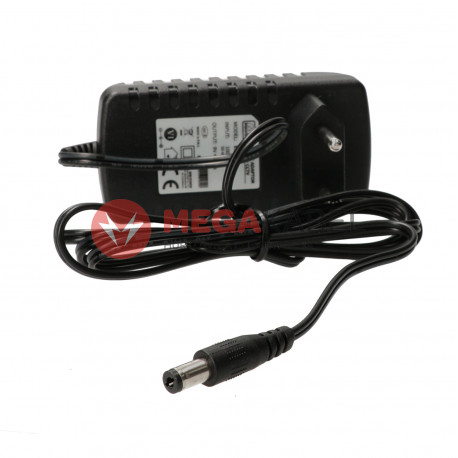

• Plug: Female 2.1 / 5.5, V+ inside
• Wymiary: 85*43*69(dł.*szer.*wys.)
• Weight: 0.1kg; 100pcs/carton; carton weight and dimensions: 13.1kg; 48.5 x 38.5 x 25cm
• Cable length: 1.5m
