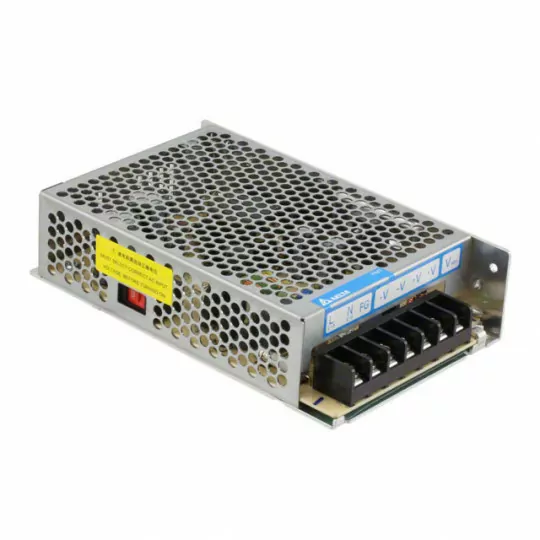

Modular power supply 1A 24V 4.5A MPL Delt

Product index: PMT-24V100W1AA
Price (with Tax.)
PLN79.00
0 qty.

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Technical information

Supply voltage
230V
Output voltage
24V
Rated power
100W

Product description

The power supply meets all standards and criteria, making it suitable for use in industrial automation systems, machine control, lighting power and a wide range of equipment. Its small size allows it to be installed in hard-to-reach places and where minimization of space is needed. The power supply is cooled by free air flow, making it highly trouble-free - a very important feature when the power supply operates continuously. The operating temperature for this model is from -25 to +70oC. The product has overload protection 110-150% of nominal power.

Technical specifications:

  • DC output voltage: 24V
  • Rated current [A]: 4.5
  • Voltage adjustment range: 22.8 ~ 26.4V
  • Rated power [W]: 108
  • AC input voltage: 90~132 / 180~264 VAC
  • Frequency: 47~63Hz
  • Efficiency: 86%
  • Permissible temp. range: -10 ~ + 70° C
  • Overload protection: 110~150%
  • MTBF: 700,000 hours
  • Safety standards: TUV, EN 60950-1, UL/cUL, UL 60950-1 and CSA C22.2 no. 60950-1, CB, IEC 60950-1
  • Housing: Aluminum
  • Cooling: Passive
  • Width [mm]: 158
  • Height [mm]: 97
  • Length [mm]: 38
  • Weight [kg]: 0,35
