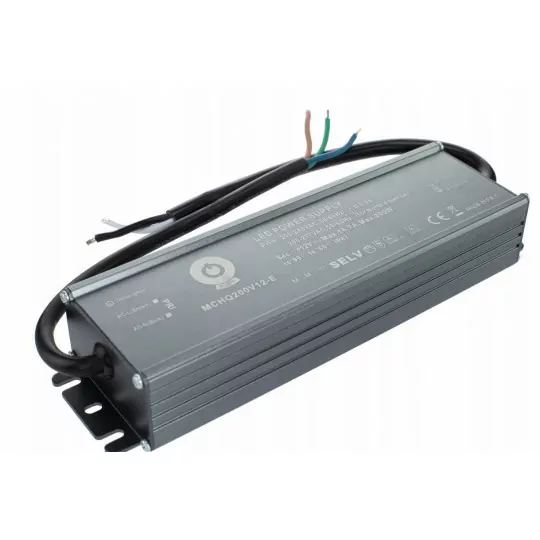

12V 16.7A 200W IP67 power supply MCHQ200V12-E POS MPL

Product description

Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. Thanks to this, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.

What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.

Technical specifications:

• Dimensions: 221 x 61.5 x 36.5mm
• Weight: 0.64kg
• European AC input range
• Built-in active PFC function
• Free air flow cooled
• Fully encapsulated with IP67
• Compliant with lighting safety regulations

OUTPUT

• 12V rated voltage
• Rated current 16.7A
• Rated power 200.4W
• No-load voltage (max.) 12.6V
• UWY stabilization depending on changes in UWE ± 1%
• Stabilization of UWY depending on changes in IWY ± 2%
• Voltage tolerance [3] ± 3%
• Ripple and noise (max.) [4] 200mVP-P
• Fixing, rise, hold time [5] 300ms, 50ms, 5ms

INPUT

• Voltage value range 200 ÷ 277VAC
• Voltage frequency range 47 ÷ 63Hz
• Power factor (typ.) PF > 0.95 / 230VAC under full load
• Efficiency (typ.) 90%
• AC current 1.3A / 230VAC
• Inrush current (max.) 75A / 230VAC(25°C)
• No-load power (typical) <0.5W
