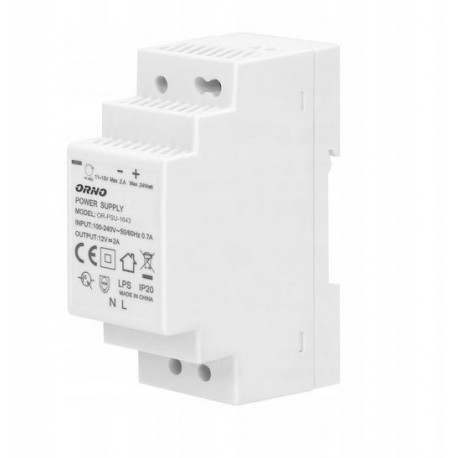

DIN rail power supply OR-PSU-1643 12V 2A 24W Orno

Product description

Internal bus power supply is a mechanical device that powers industrial machinery, among other things. In particular, it is characterized by a high degree of resistance to temperature fluctuations and voltage spikes. The whole construction is made of very high quality materials, thanks to which this further affects its performance.

These power supplies fit perfectly wherever a large power supply is needed with limited space for large power supply modules. They have a small size and a simple way of mounting on the rail , so you can mount side by side or spaced from the software controllers. The product can also work inside machines, providing them with the necessary amount of voltage for operation. The main task of the device is to measure the flow of power supply current. When there is a large amount of current, the power supply accumulates it so that the machine is not overloaded. When, on the other hand, there are power interruptions, the power supply will keep it in work or standby mode. This does not cause any mechanical failures in industrial machines.

Technical data:

• power: 24W
• output voltage: 12VDC
• voltage regulation: yes (11-13VDC)
• output current: 2A
• short-circuit, overload, voltage protection
• input voltage: ~100-230V / 50-60Hz
• protection degree: IP20
• operating temperature: -10 deg C ...+40 deg C
• storage temperature: -10 deg C ...+60 deg C
• mounting: on DIN rail TH35 (width 2 modules)
• power consumption in idle state: 0.3W
• dimensions: 35 x 90 x 58 mm
• net weight: 135g
