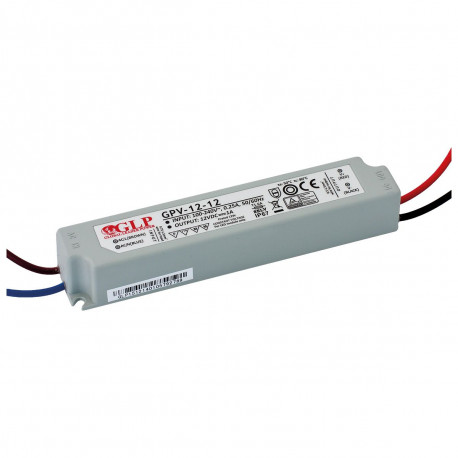

Switching power supply 12W 12V 1A IP67 GPV-12-12 GLP
Product index: GPV-12-12
Price (with Tax.)
PLN27.54
Remaining order amount to obtain free shipping
PLN0.00
Order within 10 hours 25 min. and we will ship tomorrow
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Technical information
Supply voltage
230V
Output voltage
12V
Rated power
12W
Product description
Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. GPV-12-12 power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. As a result, it is resistant not only to the already mentioned weather conditions, but also to damage of a mechanical nature, such as scratching, crushing or cracking.
What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.
Input:
- 12V rated voltage
- Rated current 1.5A
- Current range 0 ÷ 1.5A
- Rated power 18W
- Stabilization of UWY depending on changes in UWE ± 1%
- Stabilization of UWY depending on changes of IWY ± 2%
- Tolerance [3] ± 5%
- Ripple and noise (max.) [2] 120mVP-P
- Settling, rise time [4] 500ms, 250ms under full load
- Hold time (typical) 50ms / 230VAC under full load
Input:
- Voltage value range 90 ÷ 264VAC
- Voltage frequency range 47 ÷ 63Hz
- Efficiency (typical) 76% AC current (typical) 0.3A/115VAC, 0.14A / 230VAC
- Inrush current (typical) 30A / 230VAC
- Leakage current(max.) 0.25mA / 240VAC
Protections:
- Overcurrent Range: 110 ÷ 180%
- Type: alternating on/off output voltage. Automatic return to normal operation after the cause has ceased.
- Short-circuit Type: alternating on/off output voltage. Automatic return to normal operation after the cause ceases.
- Over-voltage 13 ÷ 20V Type: alternating on/off output voltage. Automatic return to normal operation after the cause has ceased.
- Thermal Range: 140°C ± 10°C detection by integrated PWM controller Type: output voltage cut-off. Automatic return to normal operation after the cause has ceased.
