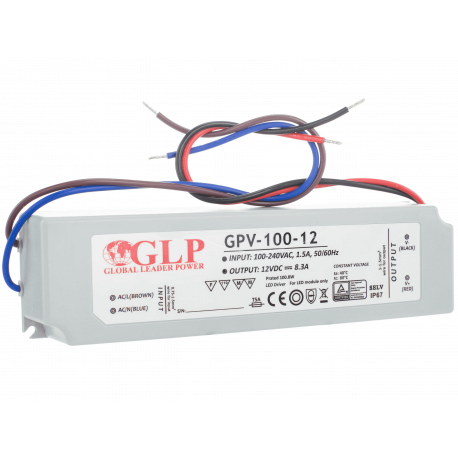

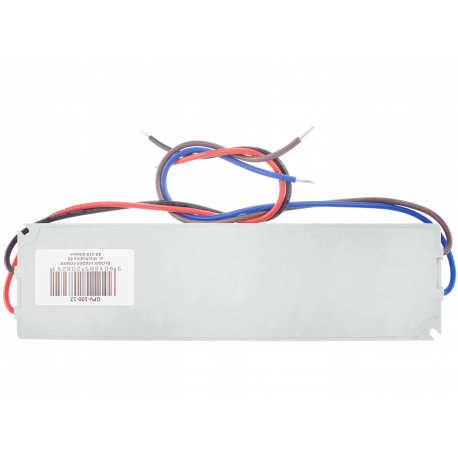

Switching power supply 100W 12V 8,5A IP67 LPV-100-12 GLP
Product index: GPV-100-12
Price (with Tax.)
PLN95.00
Remaining order amount to obtain free shipping
PLN500.00
Order within 11 hours 22 min. and we will ship tomorrow
14 days to return
Free shipping from 499 PLN
Ask a question +48 536 969 696
Technical information
Supply voltage
230V
Output voltage
12V
Rated power
100W
Product description
Hermetic power supplies are one of the basic components of LED lighting systems. Thanks to the high degree of protection, they are ideal for outdoor systems that are particularly exposed to changing weather conditions or increased humidity. The LPV-100-12 power supply is distinguished by high quality workmanship. The housing was manufactured from the best materials available on the market. This makes it resistant not only to the already mentioned weather conditions, but also to damages of a mechanical nature, such as scratches, crushing or cracks.
What also distinguishes the power supply is, first of all, its compact size and light weight. Thanks to these parameters, it can be used wherever there is limited space or in hard-to-reach places. The versatility and high level of safety provided by the hermetic LED power supply makes it suitable for LED tapes, panels, or bulbs. In addition, it can also be used for all those electronic devices that have an output voltage rating matching it.
Technical data
- Ratedoutput voltage (V):12V DC
- Rated output current(A):8.3A
- Outputcurrent range(A):0 ÷ 8.3A
- Output power(W):99.6W
- Stabilization ofUWY according to changes in UWE:± 1%
- UWY stabilization depending onIWYchanges:± 2%
- Tolerance *:± 5%
- Ripple and noise (max.):200mVP-P
- Fixing time, rise time:1300ms, 80ms / 230VAC; 2500ms, 80ms / 230VAC under full load
- Hold time (typ.):40ms / 115VAC / 230VAC under full load
- Input voltage value range:90 ÷ 264VAC; 127 ÷ 370VDC
- Input voltage frequency range:47 ÷ 63Hz
- Efficiency:87%
- AC current (type):2A/115VAC, 1A / 230VAC
- Inrush current:75A / 230VAC
- Leakage current(max.):<1mA / 240VAC
- Overcurrent protection:Range: 150 ÷ 200% of rated output current. Type: alternating on/off output voltage. Automatic return to normal operation after the cause has ceased.
- Short-circuit protection:Type: alternating on/off output voltage. Automatic return to normal operation after the cause has ceased.
- Over-voltage protection:18 ÷ 22V Type: alternating on/off output voltage. Automatic return to normal operation after the cause has ceased
- Thermal protection:Range: 140°C ± 10°C detection by integrated PWM controller. Type: output voltage cutoff. Return to normal operation after disconnecting and reconnecting the input voltage.
- Operating temperature:-30°C ÷ 70°C (see characteristic of load capacity depending on ambient temperature).
- Operating humidity: 20 ÷ 90% relative humidity (non-condensing)
- Storage temperature and humidity:-40°C ÷ 80°C, 10 ÷ 95% relative humidity(non-condensing)
- Temperature coefficient:± 0.03% / °C (0°C ÷ 50°C)
- Vibration resistance:10 ÷ 500Hz, 5G, 12min / periodically for 72min along X, Y, Z axis
- Safety standards:Conformsto EN 61347-1, EN 61347-2-13, IP67.
- Insulationresistance:I/O: 3kVAC
- Insulationresistance:I/O: 100MΩ/500VDC/25°C/70%.
- EMC emission standards:EN55015 compliance.
- EMCimmunity standards:Conforms to EN61547; EN61000-4-2, -3, -4, -5, -6, -8, -11
- Harmonic currents:Compliance with EN61000-3-3; EN61000-3-2
- Dimensions:187 x 52 x 37mm (L x W x H).
