MPL-200 18V/2A 16/2.2 MPL alarm central power cabinet

Product description

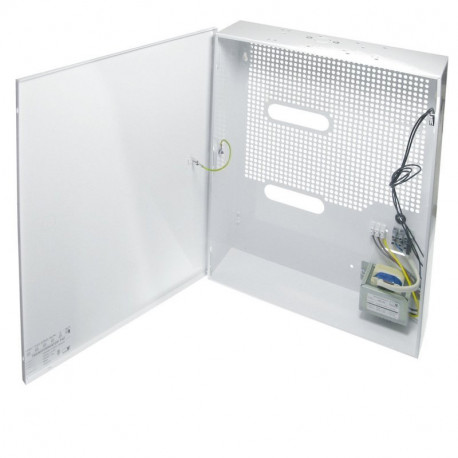

The universal enclosure is used to power and store the working control panel of the Burglary and Robbery Alarm System (SSWiN). The variety of hole spacing results in high versatility of applied models of control panels from different manufacturers. The housing is designed to be mounted vertically on the wall. Inside there is space for a maintenance-free battery of AGM type.

To prevent opening, the front panel is bolted with screws. There is also an option to install a lock with a key, in order to prevent an unauthorized person from accessing the contents of the case.

Technical data:

• Model: MPL 200
• Type: UNI
• Version: R3.2
• Transformer: 40VA
• Input: 230V AC/50Hz
• Output 1: 16V AC/2.2A
• Output 2: 18V AC/2A
• Amp Space: 12V/17Ah
• Protection: overload, short circuit - T315mA delayed fuse
• Protection: anti-sabotage - NC type contacts, 0.5A/50Vdc (max)
• Operating temperature: -10 to +40°C, environmental class II
• Weight: net 3.52kg
• Dimensions: 90×320×395mm (D × W × H)

Application in control panels:

• DSC Control Panels: (PC 1616, 1832, 1864, 4020) + 3x 5108 (4108, 5208, 5100, 4116)
• DSC Modules: (PC 5204, 5400, 5200, 5580, 4216, 4204) + 3x (5108, 4108, 5100, 4116, 5208)
• PARADOX Centrals: (E55, E65, 728ULT, EVO48, EVO192, SP5500, SP6000, SP7000) + 2 x Z X 8 (Z X 4, APR3-ADM2, APR3-HUB2)
• RISCO Central Panels: PRO24, 116, 128, 140+ RP296EPS+ EZ16 (EZ04, EZ08)
• SATEL Control Panels: CA4V1, CA5, CA6, (VERSA 5, 10, 15, CA10) + 2 x CA10E (CA 64E, SM, MST1), (INTEGRA24, 32) + 2 x CA64E (SM)
• SATEL Modules: CA64 (PP, EPS, ADR, O-R, O-ROC, O-OC, OPS-OC, OPS-R, OPS-ROC, VGM-16, SR, PTSA) + 2 x CA64E (SM)
• TEXECOM: PREMIER 412, 816, 832, 48, 88, 168, 640
• PYRONIX: MATRIX 424, 6, 816, 832, 832+
• TELMOR: TCA-824 + TEX800+ TMT1
• ROEL: SIGMA 6, 12, CERBERUS
• ROGER: PR402, CPR 32-CE
• EBS: PX 202A
