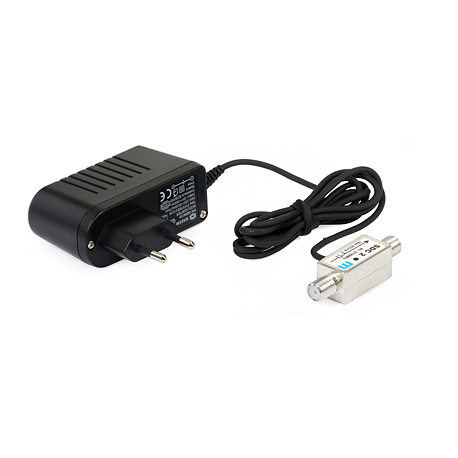

TV antenna power supply ZS300 sep SDC2/DC12V 300mA DIPOL

Product description

The power supply is designed for continuous operation, it is used to power antenna amplifiers through the antenna coaxial cable. This is possible due to the use of a power separator located in the antenna plug housing, with which the power supply is equipped. Installation of the coaxial cable should be done according to the enclosed instructions. Correct operation of the power supply will be indicated by the indicator light on the power supply housing. In the case of faulty connection of the cable to the amplifier or antenna plug - separator (short circuit of the braid and inner cable), the control diode will not light up.

Technical data:

• Name: TV antenna power supply ZS300
• Code: D0017
• Power supply circuit: Inverter
• Input input: AC 100...240 V
• Operating voltage: DC 12 V
• Current capacity: 300 mA
• Short circuit protection: yes
• Signaling; LED indicator
• Connectors: 2xF
• Weight: 0.2 kg
