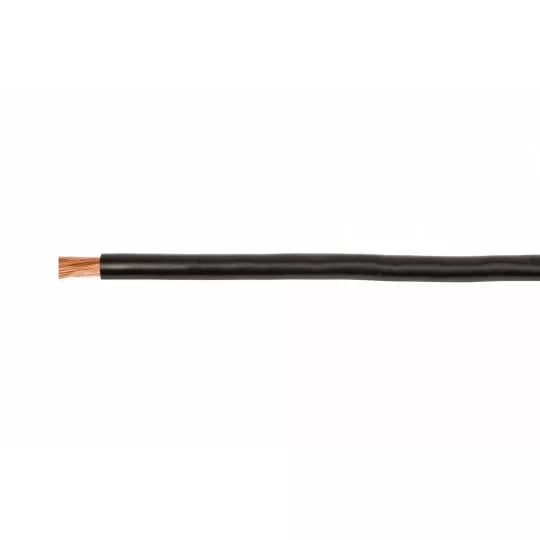

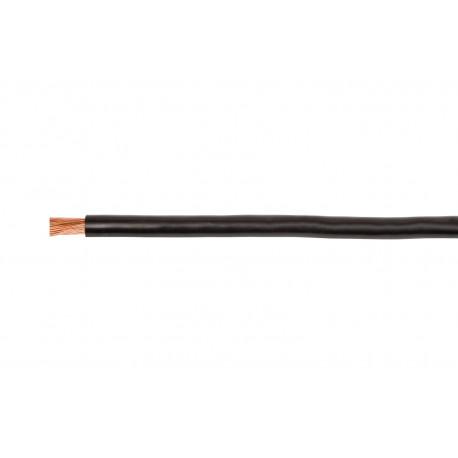

LGY 10 black cable

Product description

Cable designed for installation inside equipment and luminaires. To be permanently laid in installation pipes or other cable sheaths, exclusively for signaling or control circuits. It is a flexible product which allows it to work with various types of pipes. In turn, the middle part of the cable is made of copper wire, which allows it to be technically durable for many years.

Technical data:

• Approximate outer diameter [mm]: 6.8
• Conductor class: Class 5 = flexible
• Rated conductor cross-section [mm2]: 10
• Shield: No
• Flame retardant: In accordance with EN 60332-1-2
• Insulation color: Black
• Permissible temperature of permanently laid cable [°C] from: -40
• Halogen-free EN 50267-2-2: No
• Permissible temperature of permanently laid cable [°C] up to: 70
• Oil resistant (according to EN 60811-2-1): No
• Rated voltage U0 [V]: 450
• Conductor insulation: PVC
• Low temperature resistance (according to EN 60811-1-4): No
• Rated voltage U [V]: 750
• Approximate cable weight [kg/km]: 109
