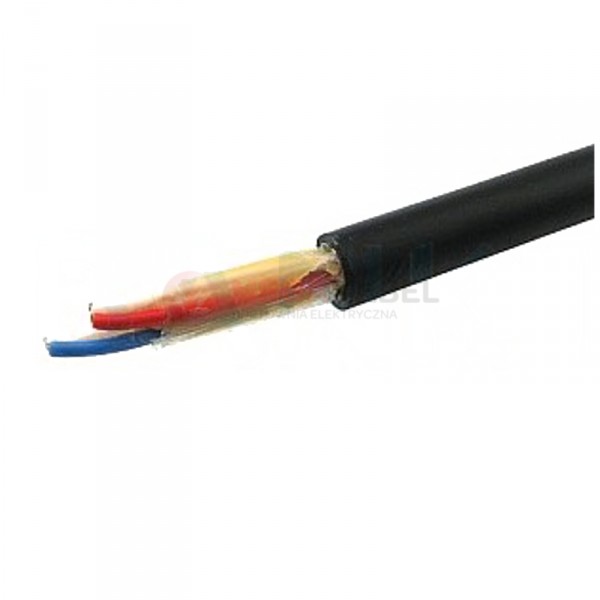

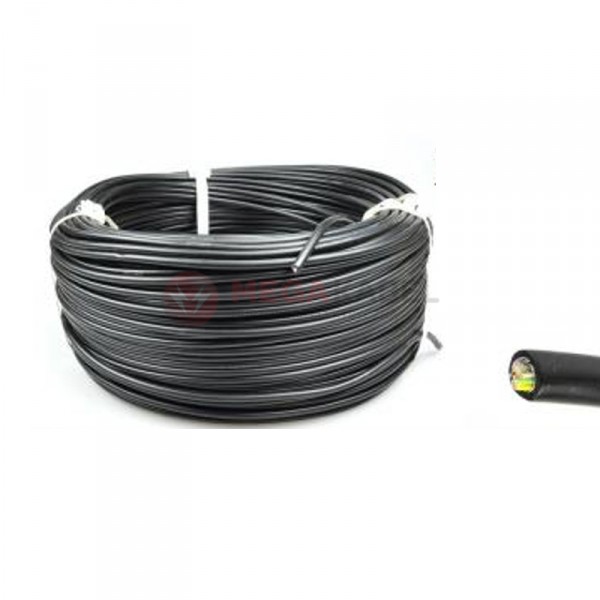

XzTKMXpw 2x2x0.8 gel-filled data communication cable

Product description

The cables are intended for the construction of telecommunications and intercom networks, to be laid in cable ducts and directly in the ground, in areas at risk of mechanical damage.

Permissible temperature of permanently laid cable [°C]: up to 70
Permissible temperature of permanently laid cable [°C]: from-40
Allowed as outdoor cable
EAN: 5900238530599
Conductor insulation: PE (foamed polyethylene)
Conductor class: Class 1 = single stranded
Insulation color: Black
Number of bundles: 2
Number of conductors: 4

Outer sheath material: PE (Polyethylene)
Flame retardant: In accordance with EN 60332-1-2
Low smoke emission (according to EN 61034-2): No
Approximate cable weight [kg/km]: 49
Approximate outside diameter [mm]: 10.5000
Transverse cable sealing: No
Longitudinal cable sealing: No
Conductor diameter [mm]0.8000
