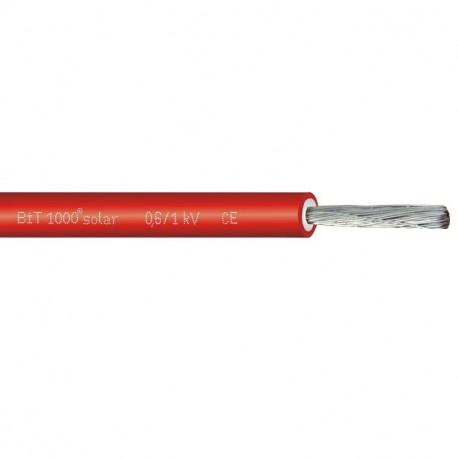

Solar photovoltaic cable 6 red BiT 1000

Photovoltaic cable is used to create a complete installation. The priority in the selection of solar cables should be for the highest possible product performance. Therefore, the quality of materials and the manufacturers' fulfillment of stringent standards and guidelines count. Photovoltaic cables have to deal with a wide operating range - from about -40°C to 110°C - so there is no so-called cold flow, which could lead to uneven cable products and short circuits. In addition, the conductor insulation materials used must maintain electrical and physical parameters and perform their functions precisely at the wide temperature variation found in outdoor PV installations.

Technical data:

• Operating temperature: -40°C to 90°C
• Min. laying temperature: -15°C
• Max. conductor temperature during operation: 120°C
• Permissible conductor temperature during short circuit: 200°C
• Operating voltage: AC: U0/U=600/1000V DC: U0/U=900/1800V
• Voltage test: 4000V
• Min. bending radius: 4xØ
• Max. pulling force: During installation: 5 0N/mm During operation (static): 15N/mm2
