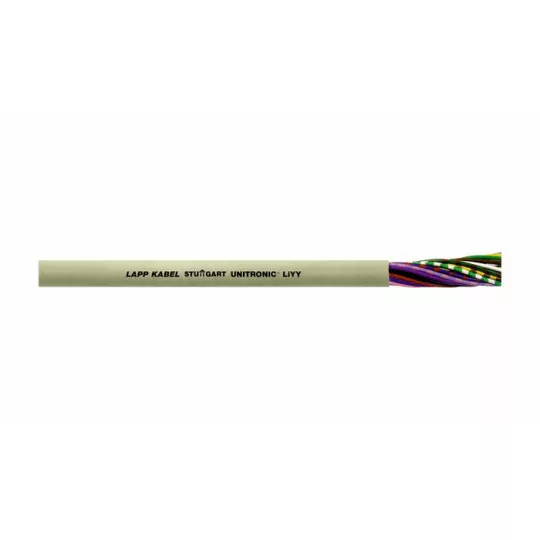

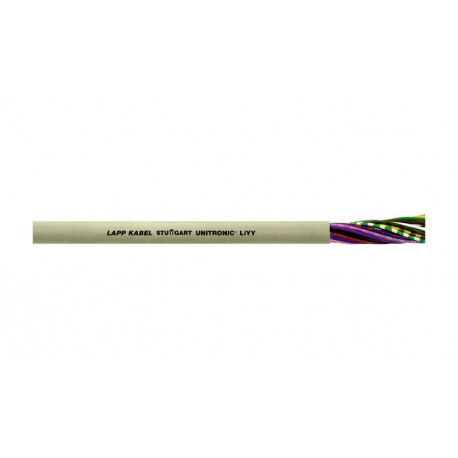

Unitronic LiYY 3x0.5 cable

Product description

LIYY control cable can be used for power supply subject to the allowable current carrying capacities specified in the manufacturer's data sheet. The cables are suitable for permanent installation and for mobile connections inside buildings in dry and humid areas. The cable sheath has good oil resistance, is self-extinguishing and does not spread flame.

The special design made it possible to achieve high flexibility and small dimensions while maintaining mechanical strength. The cable coating has good oil resistance. The cables are suitable for permanent installation and for mobile connections inside buildings indry and humid areas . The common shield in the form of braided copper wires provides very good protection against external electromagnetic fields.

Technical data:

• number of conductors and cross-section 3 x 0.5 mm
• outer diameter 5.9 mm
• copper index 38.0kg/km
• working capacitance - conductor/conductor: approx. 120 nF/km, conductor/shield: approx. 160 nF/km
• peak operating voltage (not for power supply) for 0.14 mm² conductor: 350 V, for >= 0.25 mm² conductor: 500 V
• inductance approx. 0.65 mH/km
• specific insulation resistance > 20 GOm x cm
• conductor construction: wire, thin wires, 0.34 mm²: 7-wire
• test voltage - at 0.14 mm²: 1200 V ≥ 0.25 mm²: 1500 V
• temperature range - sporadically mobile: from -5°C to +70°C, non-mobile connections: from -40°C to +80°C
• pure copper conductor
• conductor insulation made of PVC
• braid of tin-plated copper wires
• outer sheath made of PVCColor of outer sheath: beige gray (RAL 7032)
