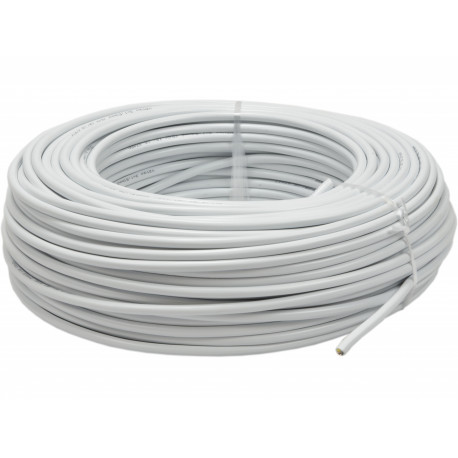

YDY round cable 2x2.5

Product description

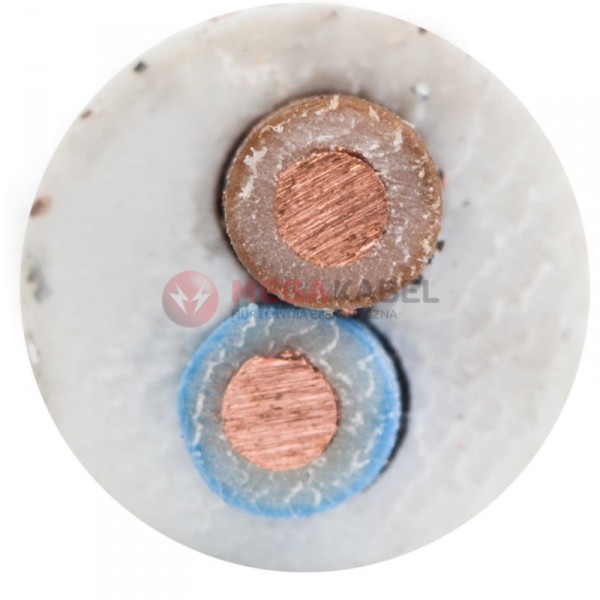

YDYp 4x2.5 multicore, flat power cable has 2 single stranded copper conductors of class 1 (RE). The outer sheath material of the cable and the insulation is made of white polyvinyl chloride (PVC) sheath.For YDYp 4x2.5 cables permanently laid, the minimum ambient temperature is -30°C, and the maximum temperature of the conductor during a short circuit is +160°C.For mobile connections, the permissible operating temperatures are from -40°C to 70°C.The cable is intended for permanent installation in electric power equipment, industrial and domestic installations, in dry and damp rooms on plaster and under plaster. It can also be used outdoors, as long as it is protected from direct sunlight.

Technical data:

• Product series: YDYp
• Manufacturer's index: YDYp_4x2.5_750_100
• Category: Flat
• Permissible cable temperature for mobile connections [°C] up to 70
• Permissible cable temperature for mobile connections [°C] from -40
• Conductor insulation: PVC
• Conductor class: Class 1 = single-wire
• Number of conductors: 2
• Outer sheath material: PVC
• Rated voltage U [V] 750
• Rated voltage U0 [V] 450
• Flame retardant: According to EN 60332-1-2
