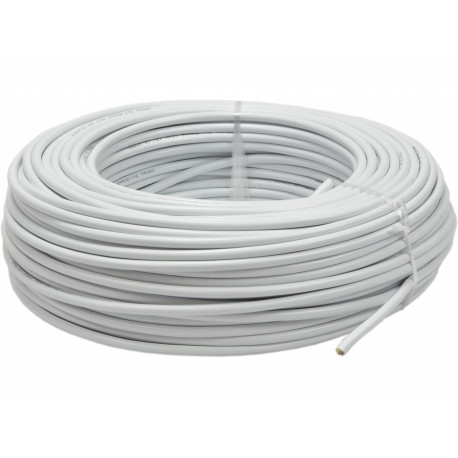

YDY round cable 5x1.5

Product description

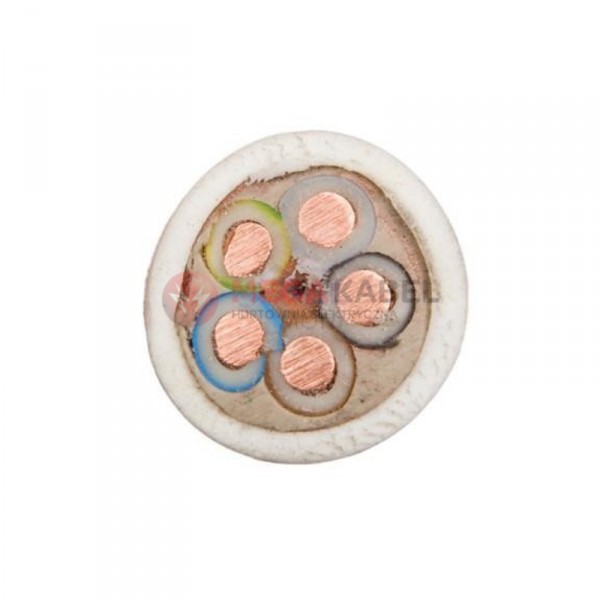

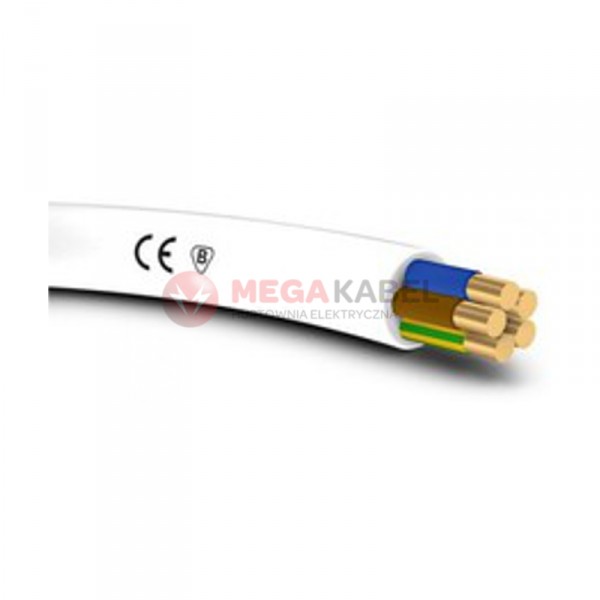

YDY 5x1.5 żo 450/750V cable is a high-quality product included in the catalog offer of the Polish company TELEFONIKA - one of the leading manufacturers of cables and wires for various applications. This product will find its application in both industrial and domestic installations. It can be installed above and below the plaster. The cable can operate in a temperature range from -30°C to 70°C and is resistant to moisture. Therefore, it can be installed in dry, as well as wet areas, in pipes and concrete. The exception to this is embedding directly in poured single-fraction, vibrated and rammed concrete. The cable can be used outdoors, but only after protection from UV radiation. TELEFONIKA cable consists of 5 single stranded copper conductors made in class 1. The cross-section of the conductors is 1.5 mm. In turn, their colors are: green-yellow, blue, brown, black, gray. The green-yellow conductor protects against shock. The outer sheath is made of high-quality PVC. The product does not spread flame in accordance with EN 60332-1-2.The approximate outer diameter of the cable is 10.4 mm. The minimum bending radius is six times the outer diameter of the cable. The permissible rated voltage is 750 V, and the rated voltage U0 is 450 V. The maximum conductor temperature is 70°C.
