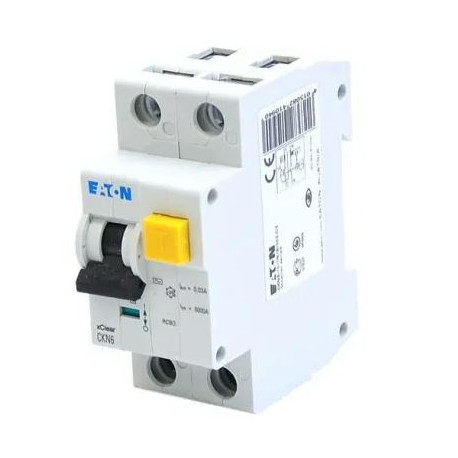

Residual current circuit breaker 2P B 10/0.03A CKN6 EATON

Anovercurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations, as well as household electrical appliances.

Eaton Electric is a company that manufactures modern overcurrent circuit breakers in a wide range of current ratings. They are used in residential and public buildings, as well as in industry.They protect electrical installations from the effects of short circuits and overloads. These products have a convenient elevator terminal system, which ensures the strong attachment of switching wires.They are matched for quick installation on a standard rail TS35 mm.

Technical data:

• number of poles 1P + N
• Number of modules 18mm 2
• Rated current In 10 A
• Rated differential current IΔn 30 mA
• Rated non-triggering differential current IΔno 15 mA
• Short-circuit strength Inc 6000 A
• Rated switching voltage Ue (AC) 230 V
• Rated frequency 50 Hz
• Rated surge voltage Uimp 4 kV
• Rated insulation voltage Ui 440 V
• Tripping time without delay
• Electrical strength (number of cycles) 4,000
• Mechanical endurance (number of cycles) 20,000
• Mounting 35 mm rail (TH35/DIN)
• Connection method rail/wind terminal
• Max. cross-section of connection wires 25 mm²
