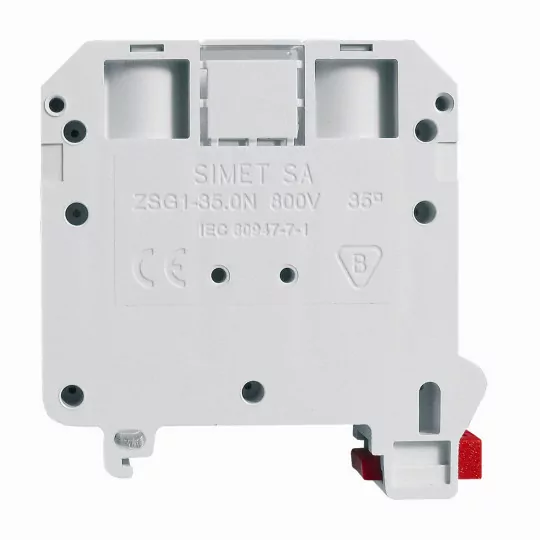

2P busbar connector ZSG1-35.0N grey 11721312 Simet

Product description

OTL connectors are universal connectors both in terms of the application ( power industry, industry, residential installations ) and in terms of the material from which the wire conductor is made ( wire or cable, sector rigid and multi-stranded wires ). Thanks to special tinning technology, they allow convenient and safe connection of wires made of both copper and aluminum, without the need for any Cu/Al adapters, special bimetallic terminals and others.

The wires are connected directly to the terminals, and the special contact paste applied already at the production stage ensures the protection of the electrical contact point, and also makes the OTL terminals ready for use immediately after removal from the package.

Technical data:

• Cross section of the connected single-wire wire [mm2] from: 2.5
• Color: Gray
• Closure plate required: No
• Number of levels: 1
• Cross section of connected single-wire wire [mm2] up to: 35
• Type of insulating material: Thermoplastic
• Width/raster size [mm]: 16
• Cross section of the connected wire cable without sleeve end [mm2] from: 2.5
• Length [mm]: 60
• Flammability class of insulating material according to UL 94: V0
• Height at lowest mounting method [mm]: 52.5
• Cross-section of the connected wire without sleeve end [mm2] up to: 35
• Internal bridged floors: No
• Rated current In [A]: 125
• Cross section of connected multicore cable [mm2] up to: 35
• Electrical connection type 1: Screw connection
• Operating temperature range [°C] from: -25.0
• Electrical connection type2: Screw connection
• Number of terminals per floor: 2
• Operating temperature range [°C] up to: 125
• Connection position: Side / side
• Cross section of connected multicore cable [mm2] from: 2.5
• Mounting method: DIN 35 mm mounting rail
• Explosion-proof version "EEx e": No
