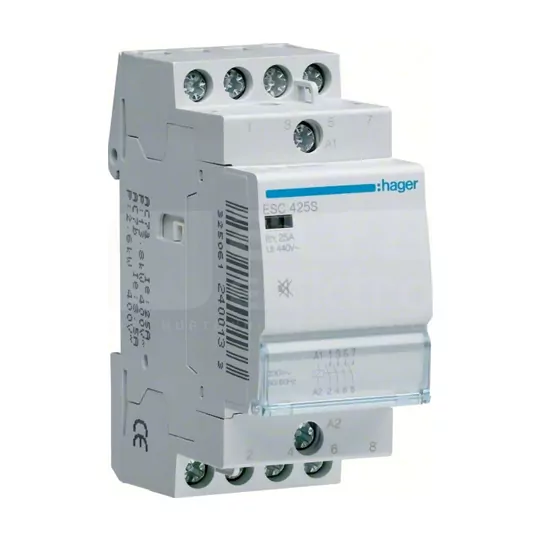

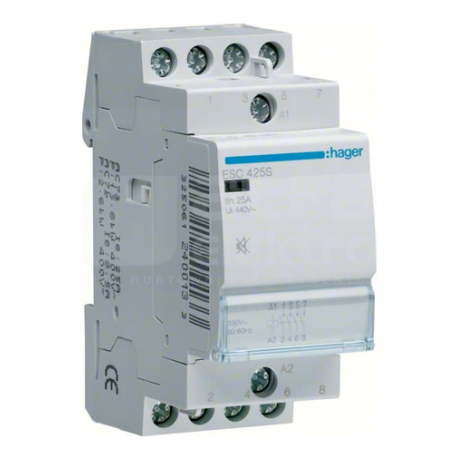

Modular contactor ESC428S 25A 3Z/1R 230V Hager

Modular contactor ESC428S 25A 3Z/1R 230V Hager

Product index: 0001-00000-71366
Price (with Tax.)
PLN128.00
0 qty.

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Product description

Modular contactor is otherwise known as a mechanical switch, it is designed to create a sense of security for users of the electrical system. It also provides a more efficient and effective operation of the entire connected electrical system. This equipment is mounted on rails. This helps to make its assembly or disassembly faster. The key elements of the internal construction, responsible for the operation of the device, are the working contacts - one or several pairs, the coil and the solenoid.

This product works on the principle of closing and opening of the contacts of the installation by means of an electromagnet. When the coil of the contactor is activated by a voltage of the appropriate value, the contacts close - the circuit is closed, that is, the current is switched on.And when the voltage on the coil drops, and the contacts automatically return to the original position, while opening - the opening of the circuit takes place, that is, the disconnection of the current.

Technical data:

  • Depth of incorporation [mm] : 60
  • Number of modules : 2
  • Number of normally open contacts : 1
  • Number of normally closed contacts : 3
  • Maximum switching capacity for incandescent lamps [W] : 2,8000
  • Option for additional equipment : Yes
  • Control voltage type : AC
  • Supply voltage type : AC
  • Degree of protection (IP) : IP20
  • Slide for manual operation : No
  • Rated coil voltage [V] : 230
  • Rated operating voltage [V] to : 400
  • Rated operating voltage [V] from : 230
  • Rated operating current [A] : 25
