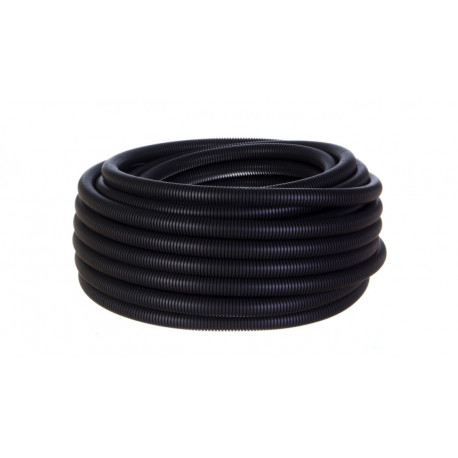

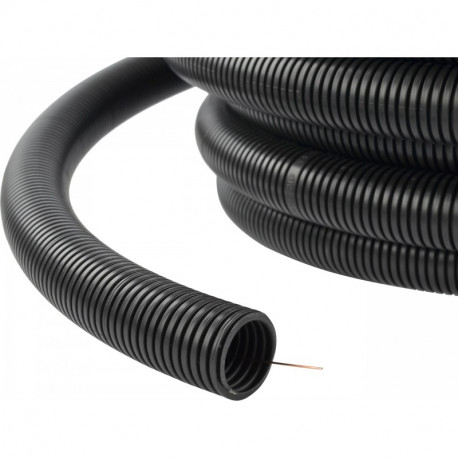

Corrugated pipe 16/12/320N with pilot grey 1 meter TTPLAST

Product description

Corrugated pipes are used for the construction of cable sewers. They are made of high-quality PE plastic, so they are durable and provide a long service life. The use of corrugated layers (outer and inner) significantly strengthens the structure of the pipe and facilitates the insertion of the cable at a distance.

The corrugated pipe is equipped with a line, which greatly facilitates the insertion or replacement of cables. Halogen-free flexible double-walled corrugated conduit is designed for mechanical protection of all types of power and telecommunications cables. When mechanically compacting the layers over the conduit, care must be taken to ensure that the permitted load values of the conduit are not exceeded. Corrugated pipe is sold in coils of 50 meters in length as well as by meters. 1 PIECE IS 1 METER OF PRODUCT!

Advantages:

• The pipe is equipped with a pilot (cord or line), which makes it easy to pull and replace cables
• Comes with a ZRD connector (coupler/connector)
• Degree of protection: IP44 (when using a sealing ring IP 67 - not included)
• CE declaration

Technical data:

• Ean : 5908312751052

• Color: Gray

• Material: PVC

• Cover material: PVC

• UV resistance : No

• Oil resistance : No

• Bendability : Flexible/flexible

• Flame spreading : No

• Compressive strength [N] : 320

• With longitudinal slit: No

• Operating temperature range [°C] to : 60

• Operating temperature range [ °C] from : -5

• Lockable (two-piece): No

• Inner diameter [mm] : 12

• Outside diameter [mm] : 16

• Nominal diameter [mm] : 16
