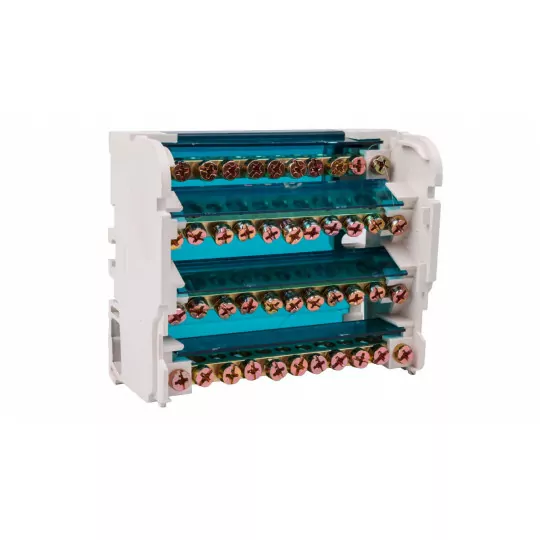

Block of distribution strips 4-pole EBR 4-11/125 Ergom

Product description

Thedistribution block is used in distribution cabinets for the safe connection of electrical installations. The product is connected using cable lugs. The distribution block has a total of 44 connections, 2 of them with an area of 25 mm2, 7 smaller than 6 mm2 and the rest of the connections larger than 25 mm2.

The product is equipped with 4 poles. The insulation voltage rating is up to 500 V. It can be mounted directly on bore busbars using threaded terminals or special attachments.

Technical data:

• Width [mm] 100 mm
• Height [mm] 48 mm
• Depth [mm] 88 mm
• Net price per commercial unit 44.70
• Lead time in days 1
• Lead time in business days 1
• Gross length 0 .13
• Number of poles 4
• Number of terminals per pole 11
• Maximum rated current [A] 125 A
• min. quantity to order 1
• abbreviated name EBR 4-11/125
• Cross section of flexible conductor with sleeve end [mm2] 1.5 mm2
• Cross section of rigid conductor (single wire, multi-strand) [mm2 ] 2.5 mm2
