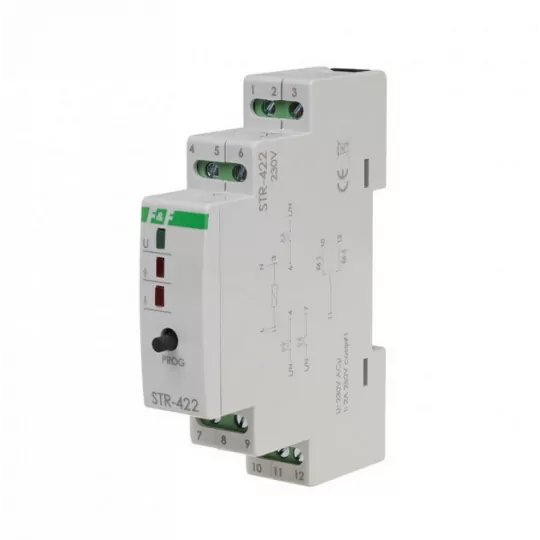

STR-422 230V single-button roller shutter controller F&F

Product description

Roller shutter controller is a device that turns on and off the entire mechanism connected to it. It is a device that is responsible for daily as well as additional work with external roller shutters. The product is a great device for use in single-family homes as well as large production halls.In particular, it is characterized by a high degree of resistance to temperature fluctuations and voltage spikes. The whole structure is made of very high quality materials so that it further affects its performance.

They have a small size and a simple way of mounting with a mounting rail. The wires work under a constant supply voltage of 230V.

Technical data:

• power supply: 230V AC
• load current AC-3: <2A
• control pulse current for L/N: <1mA
• switching-on time - programmable: 0sek÷10min
• power supply / programming: green LED
• tripping signaling: 2×LED red
• power consumption: 1W
• operating temperature: -25÷50°C
• connection: 2.5mm² screw terminals
• dimensions: 1 module (18mm)
• mounting: on 35mm rail
