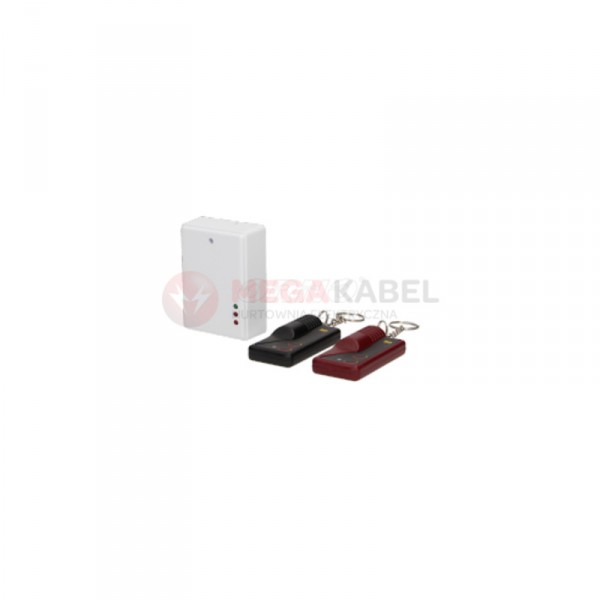

Gorke RSU-KO2/2 ORNO two-channel radio controller

Product description

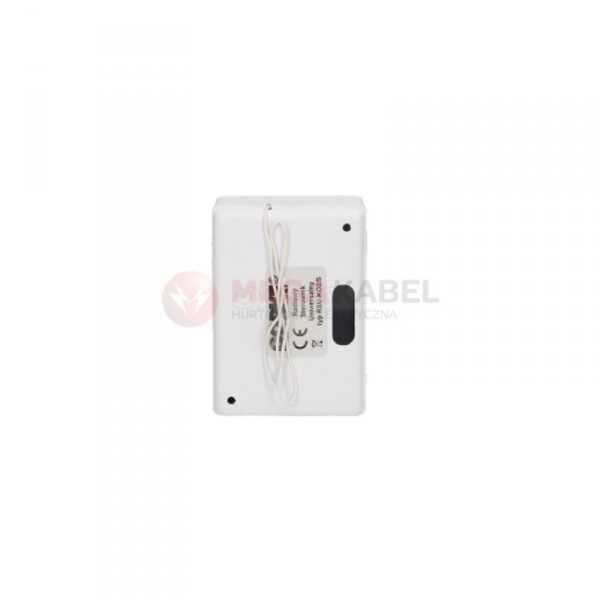

Controller data:

• type of receiving module: superreaction
• sensitivity: -100 dBm
• number of channels: 2
• memory capacity: 14 option 113
• rated supply voltage: 12 V DC
• permissible supply voltage: 10-15 V DC
• resting current consumption: 17 mA
• maximum current consumption: 60 mA
• load capacity:

  1. relay output: 1A/ 30 V DC
  2. transistor output S:0.5A/ 12 V DC

  3. tamper output: 50mA/ 12 V DC

• relay operation mode: mono or bistable
• time range for mon omode: ~1s-4min20s
• temperature operating range: 0 to+40°C
• dimensions: 48 x 68 x 26 mm (W/H/D)
• cooperation: any GE transmitter (exception: NRP 102K)
• range: 100 m

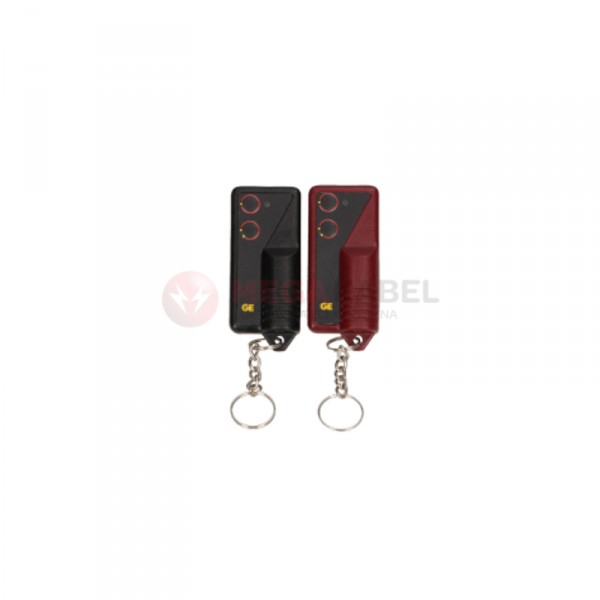

Remote control data:

• number of keys: 2
• range :100 m
• power: <5mW
• power supply: 1x 12V battery
• dimensions: 29 x 61 x 11 mm (W/H/D)
