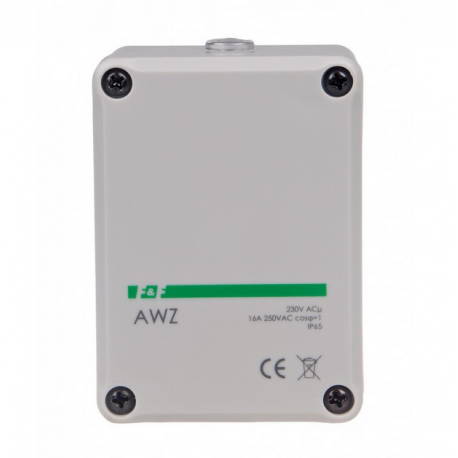

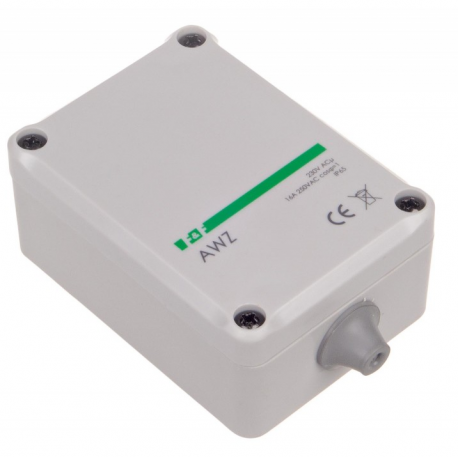

AWZ 16A 230V IP65 F&F automatic twilight switch

Thecontact current given in the technical data is a maximum value and may be subject to limitations. If the information provided shows that the relay in the device is insufficient, it is recommended to use an external switching element (e.g. contactor) suitable for switching high surge currents.

Make sure that the light source being switched on does not illuminate the sensor of the twilight automatic device. Otherwise it may lead to accidental switching on and off of the light source. When checking the operation of the automat, cover the whole automat tightly, e.g. with a cardboard box or dark, thick fabric. Covering only the "eye" of the probe, for example, with a finger is insufficient, as the intensity of sunlight is very strong and penetrates into the photoelement through the plastic housing and human body.

Technical data:

• Power supply 230 V
• Maximum load: 16 A
• Photosensitive element built-in
• Hermetic housing

• Surface mounting
