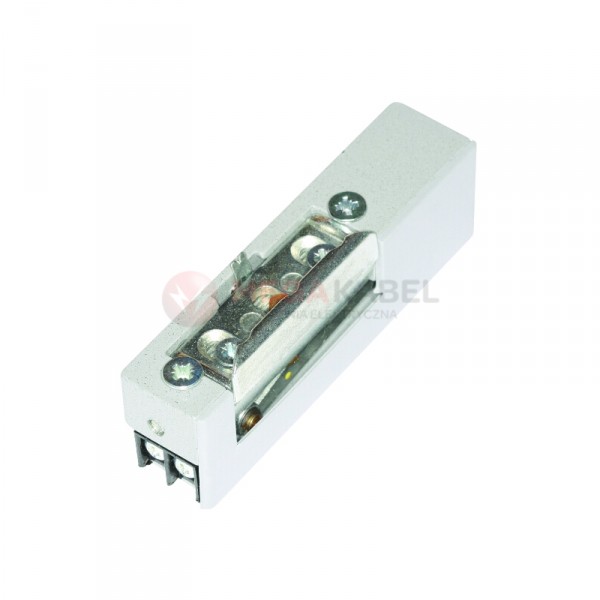

Electromagnetic narrow left latch with memory and lock R3-12.40L ORNO

Product description

The R3 latch is designed to remotely open doors and wickets, both right and left, and to work with a deadbolt or latch lock. This version can be used in premises where temporary unlocking of doors is needed, e.g. offices, service establishments during business hours. After office hours, the striker can be locked, in which case access is controlled by an intercom system.

Technical data:

• Permissible pressure on the door when releasing the latch: 30N (3 kg)
• Permissible door load acting on the striker: 3000N (300 kg)
• Permissible time of continuous operation: 30 min.
• Rated voltage: U:12VDC
• Current: approx. 300mA
• External housing dimensions: 22x28.5x90mm
• Lock: adjustable within 3mm allows you to adjust the door clearance
