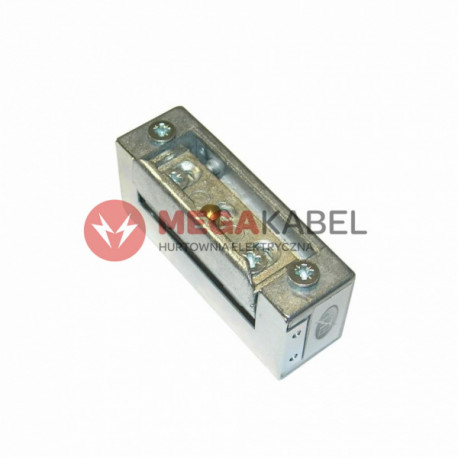

Symmetrical electric door strike with memory R4 ELP

Product description

The R4 latch is designed to remotely open doors and wickets, both right and left, and to work with a deadbolt or latch lock. This version can be used in premises where temporary unlocking of doors is needed, e.g. offices, service establishments during business hours. After office hours, the striker can be locked, in which case access is controlled by an intercom system.

Technical data:

• External dimensions of the housing: 21 x 29 x 67 mm
• Weight: 0.16 kg
• Permissible pressure on the door when releasing the latch: 30N (3 kG)
• Permissible door load acting on the striker: 3000N (300 kG)
• Rated voltage U: 10 ą 2V * 24 ą 2V **.
• Current I: AC 280-530mA DC 330-660mA
• Permissible time of continuous operation: 30 min.
• 3mm adjustable pawl: allows you to adjust the clearance
