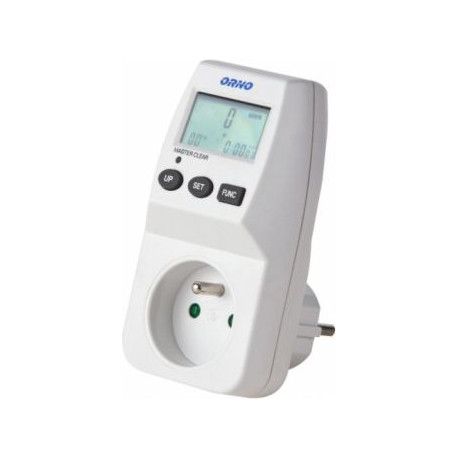

Energy wattmeter 2-phase calculator OR-WAT-402 Orno

Product description

An electricity meter can colloquially be called a power consumption meter. It counts, measures and records data on the amount of electricity used in your home. It is an integral part of the completion of any installation. Each such device is equipped with an LED display, thanks to which we can easily read the values given on it. Installation is simple and safe. All you need to do is insert the element into the wall socket.

The product is powered by current voltage with a maximum output of 230V. The meter is made of excellent quality materials, thanks to which it has an appropriate degree of tightness. It is a durable and stable device.

Technical data:

• current time,
• current voltage,
• current,
• power factor,
• frequency
• maximum current load and overload warning
• price per kWh,
• power supply: ~230VAC/50Hz
• max load: 3600W/16A
• voltage measurement range: 190-276V AC
• voltage measurement accuracy: 1%
• current intensity measurement range: 0.01-16A
• current measurement accuracy: 1% or 0.01A
• power measurement range: 0.2-4416W
• power measurement accuracy: 1% or 0.02W
• energy measurement range: 0-9999.9 kWh
• frequency measurement range: 45-65Hz
• clock measurement accuracy: 1 minute per month
• energy consumption: <0,5W
• operating temperature: -100C +400C
• internal rechargeable battery: 3x1.5V LR44/AG13
• degree of protection: IP20
• dimensions: 64 x 120 x 87mm (W/H/D)
