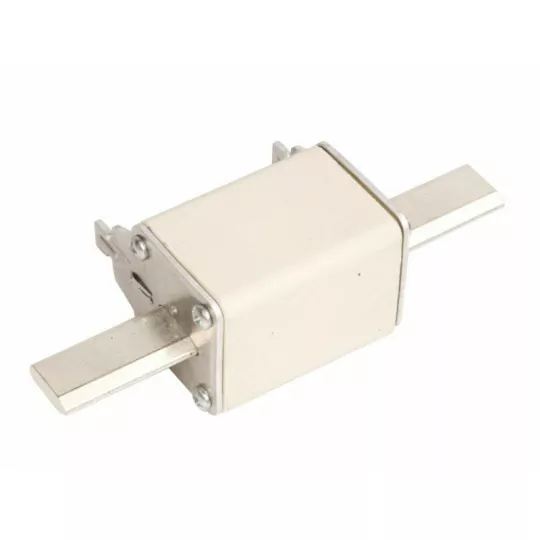

NH1 160A gG 500V WT-1 ETI knife insert

Product description

Fuse-links are devices that are used to protect power lines from harmful and dangerous effects of short circuits and overloads. The presented model is described by the manufacturer - ETI POLAM - with gL/gG characteristics. This means that the device provides full-range protection. The insert is designed to protect primarily wires and cables (gL) and general-purpose equipment. When using it, it is worth paying attention to the electrical parameters of the device. This is because the product operates at rated voltage, the value of which is equal to 500 V. In turn, the value of the rated current in this case is 160 A.

The device is equipped with a practical, top indicator. The presented model is available in NH2C size. The product is part of the innovative WT-NH line produced by the aforementioned ETI POLAM concern. Top-class specialists have been working on the company's development since 1997. During this time the brand has made a name for itself as one of the leading manufacturers of, among other things: modern overcurrent and residual current circuit breakers.

Technical data:

• Rated voltage: 500 V AC
• Rated current: 160 A
• Characteristics: delayed gG
• Rated short-circuit capacity: 120 kA
