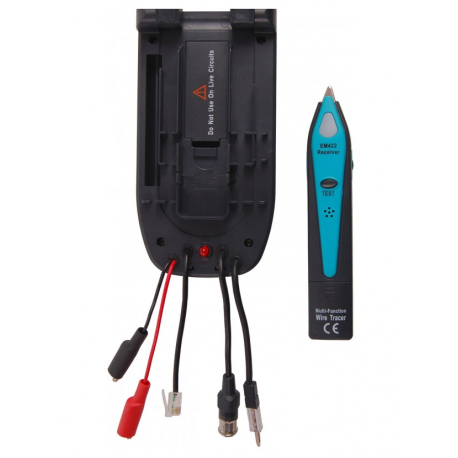

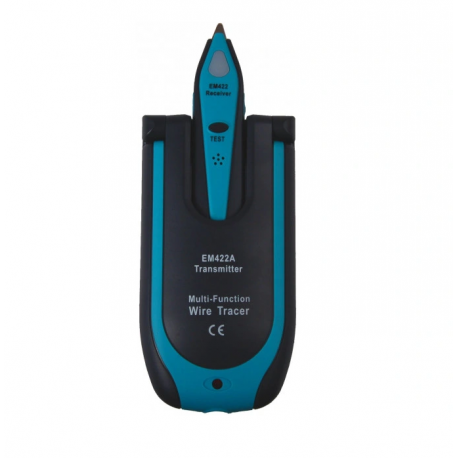

EM422A aiiqsun Wire Tracer Cable Locator

Product description

Cable locator otherwise known as a transmitter or detector. As the name suggests, it is used to detect cables in the wall. It is the fastest method of searching for cables. Transmitters are used in construction, electronics or telecommunications companies and wherever cables in walls are measured on a daily basis. The operation of the detector is based on the phenomenon of electromagnetic induction. This method makes it easy to detect cables through which current flows. Each detector is built on the same principle: it consists of a high-frequency signal generator and its locating receiver.

This is the most simple detector model on the market. It is made of plastic of the highest quality. As a result, this model is durable it will surely serve you for many years.

Technical specifications:

• acoustic and optical LED signaling
• sensitivity adjustment
• transmitter output terminals (adapters):
• F plug (for coaxial cable),
• RJ11 plug (telecommunications)
• 2 wires with crocodiles
• transmitter 3V DC: 2x LR03 battery
• 6V DC receiver: 4x LR44 lozenge battery
• transmitter 80x40x150mm
• receiver 28x30x80mm
• weight (with batteries):
• transmitter 186g
• receiver 40

The tracer is designed to detect:

• telecommunication cables
• route of cables of not live installations
• coaxial cables
• computer/LAN networks
• automotive electrical installation
