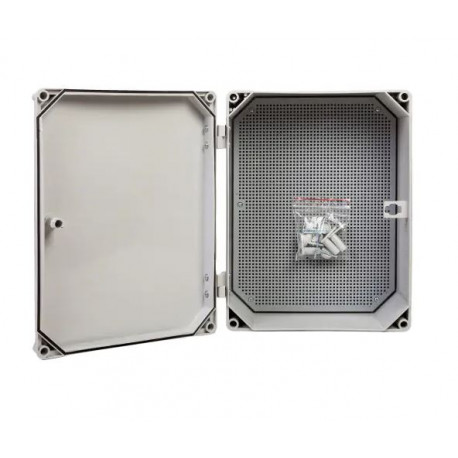

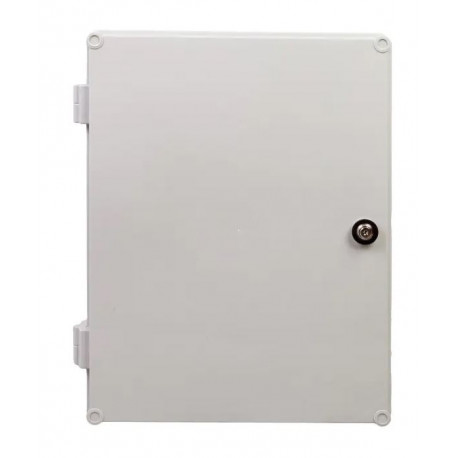

Housing 400x300x166mm with mounting plate Uni-1 43.1 IP65 ELEKTROPLAST

Product description

The switchgear housing consists of elements made of thermosetting plastic. The enclosure is empty, but has a space prepared for the installation of electrical apparatus. This type of housing can be mounted outdoors. The enclosures of this company are characterized by modular construction, which means that the switchgear can be configured in any way. They have a good ventilation system and a corrugated surface, which strengthens the entire structure. Products made of thermosetting plastic have high mechanical strength and high resistance to weather conditions.

Technical data:

• IP degree of protection : IP65
• Housing material: ABS
• opaque door
• impact resistance for the entire cabinet: IK 10
• UV resistance: no resistance
• operating temp. range: -25° to +60°
• polyurethane gasket

Dimensions:

• Height: 400 mm
• Width: 300 mm
• Depth: 160 mm
