Thermoset housing 400x580x250 STN 40x58 02050 Incobex

Product description

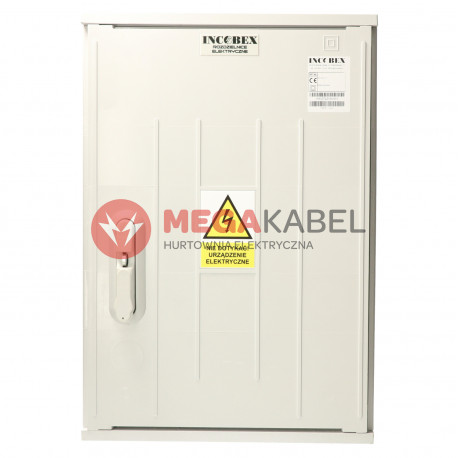

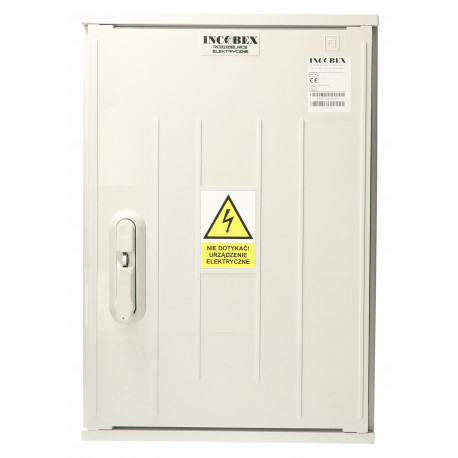

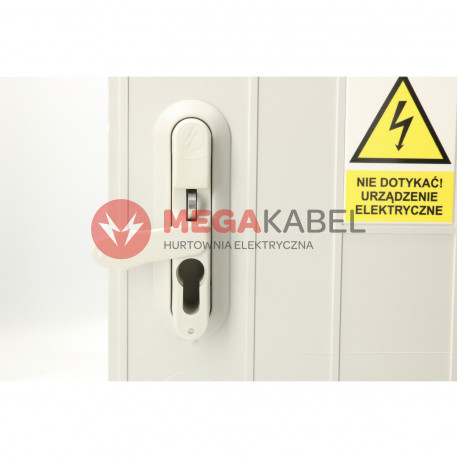

Switchgear housing in gray color, which consists of elements made of thermosetting plastic. The housing is empty, but has a space prepared for mounting electrical apparatus. This type of housing can be mounted outdoors. Incobex enclosures are characterized by modular construction, which means the possibility of any configuration of switchgear. They have a good ventilation system and a corrugated surface, which strengthens the entire structure. Products made of thermosetting plastic have high mechanical strength and high resistance to weather conditions. The housing has a place to mount a lock or padlock. This is another security feature of your installation.

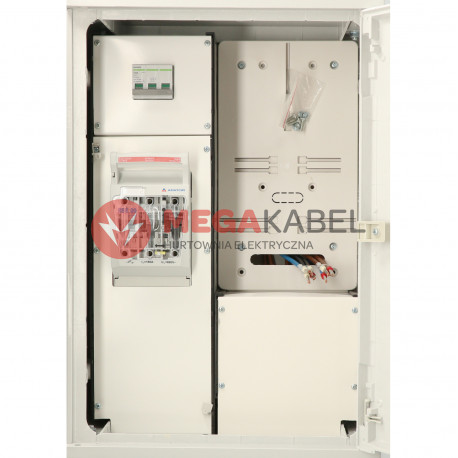

They are also characterized by aesthetics and functionality, so they are a reliable protection for the installation elements mounted inside. The manufacturer of high-quality STN thermoset enclosures is Incobex, which is one of the leading Polish manufacturers of such products with accessories. The company's products are often used by power utilities and contractors. Inside the enclosure there are all the elements for connecting the installation. These elements include, among others, mounting rails, YDY cables and 100A prepayment protection. The kit does not include ETIMAT.

Technical data

• Ean: 5901225134868
• Flush mounting: combinable
• Degree of protection (IP): IP44
• Depth [mm]: 250
• Floor mounting
• Number of doors: 1
• Suitable for metric mounting: 0
• RAL number: 7035
• Number of locks: 1
• Number of U-units: 0
• Excessive heat resistance: 960°C
• Width [mm]: 400
• Height [mm]: 580
• Material: Plastic
• Color: Gray
• Weight: 8.30 kg
• Isolating disconnector: 100A (no ETIMAT)
