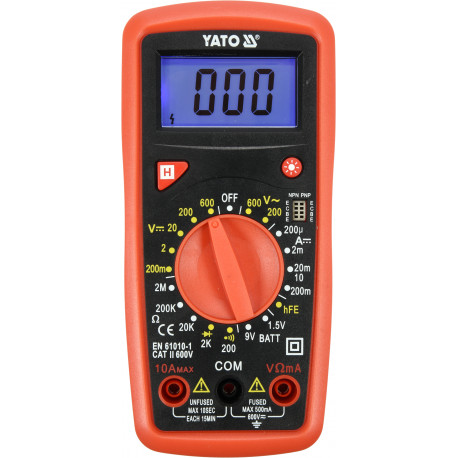

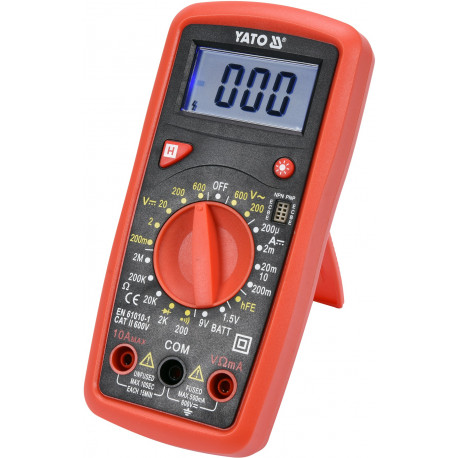

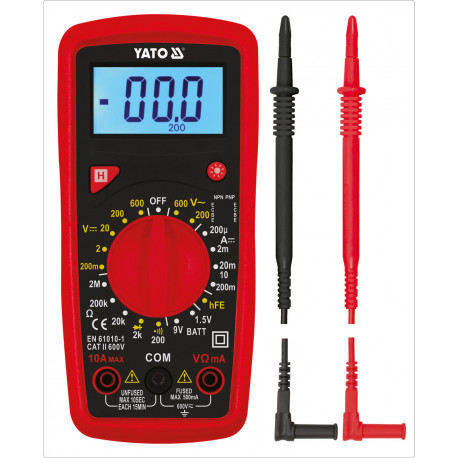

YT-73081 Yato digital multifunction meter

Product description

The meter is one of the most popular tools in all electronic and electrical enterprises. Working without a meter in such companies is practically impossible and, above all, dangerous for the worker. The task of the meter is to measure current voltage. It is an indispensable equipment for every electrician.

The product is made of excellent quality materials. This allows for precise and safe work. All internal and external components are refined so that the product can serve you for many years without any contraindications and your cooperation will be fruitful. The product is equipped with all the elements you need to start working even right away.

Technical data:

• AC voltage: U a.c. 200 V, 600 V
• DC voltage: U d.c. 200 mV, 2 V, 20 V, 200 V, 600 V
• battery test: 1.5 V, 9 V
• DC current: I d.c.. 200 μA, 2 mA, 20 mA, 200 mA, 10 A
• resistance: R 200 Ω, 2 kΩ, 20 kΩ, 200 kΩ, 2 MΩ
• diode test: IF 1 mA, UR 1.5 V
• transistor test: hFE PNP, NPN
• audible signal allows easy verification of circuit continuity
