Rozdzielnica natynkiowa 2x12 SRn IP40 SRn-24 1.6 ELEKTRO-PLAST OPATÓWEK

Product description

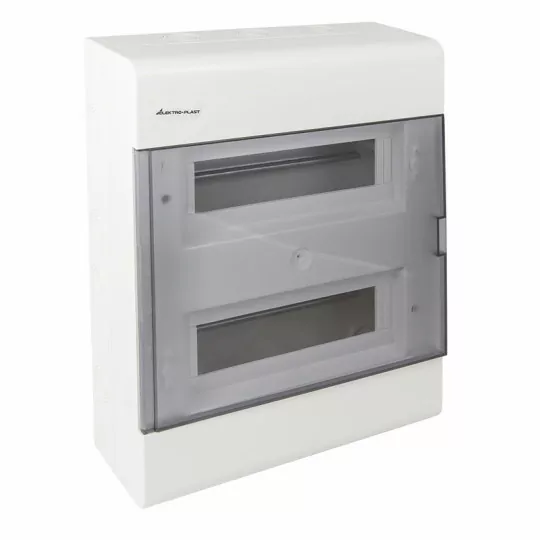

Theswitchboards are made of high quality plastic . They are adapted for indoor use. The switchgears have closed box housing and are adapted for sealing. The side parts of the case have ribs for easy insertion of cables or conduits.

The mounting element in the switchgear is a TH 35/7,5 bracket (Euroszyn), which allows for installation of overcurrent protection, residual current devices and other electrical apparatus.

Technical data:

• equipped with N+PE terminal strips and TH rail (on which it is possible to place apparatus)
• 2 rows, each row accommodates up to 12 modules of apparatus,
• white color
• protection degree is IP40

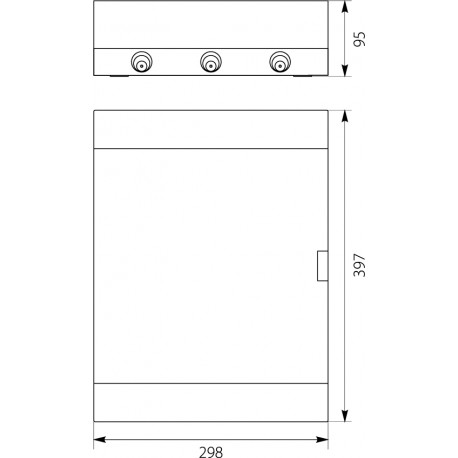

• dimensions of the switchboard are 298 x 397 x 95 mm
• Protection class:II
• Strips: N+PE
• Category: modular switchboards
• Dimensions mm: 298x397x95
• Weight: 1.6kg
