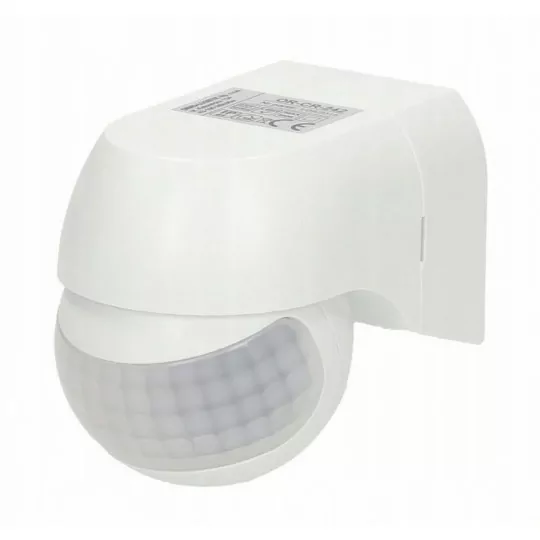

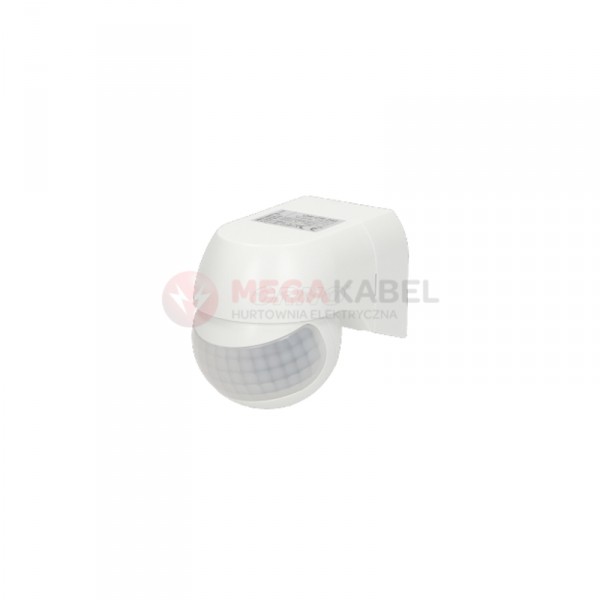

Motion sensor 180° IP44 white mini OR-CR-242 Orno

Product description

The above small-sized sensor for automatic control of lighting or other electrical devices was produced by the well-known ORNO brand. The lighting is switched on with the help of PIR motion sensors, which operate on infrared. Thanks to the IP44 degree of protection, it is possible to use it outdoors. The brightness threshold sensitivity varies between 3 and 2000 lux. The material of this sensor is high-quality thermoplastic material in white. The horizontal detection angle is 180°. The maximum switching power in this model reaches 800 watts. The minimum switching time is 10 s, while the maximum switching time is 15 min. The direct range achieved by this sensor is a maximum of 15 meters.

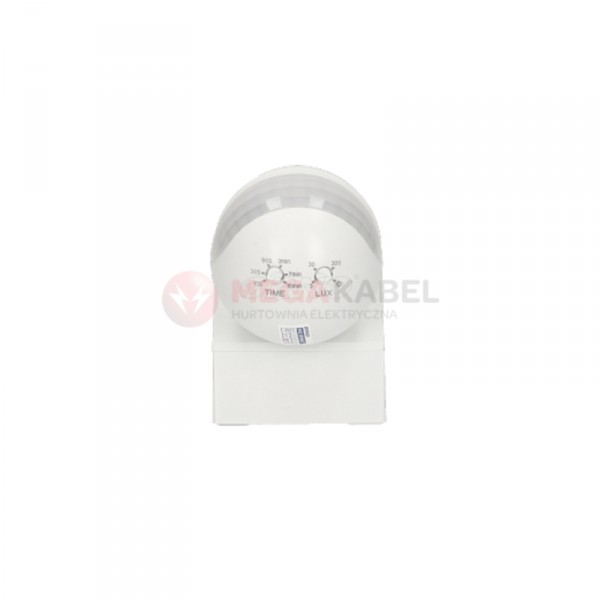

The product has an adjustable sensitivity setting. The manufacturer recommends surface mounting. The frequency range varies between 50 and 60 Hz, while the temperature range in which this sensor is capable of operating is from -20°C to 40°C. ORNO is a brand worth trusting, as it produces devices of only the highest quality.

Technical specifications:

• Power supply: 230V/50Hz
• Max. load: 800 W
• Degree of protection: IP44
• Viewing angle: horizontal 180°
• Lighting time: min: 10 sec.±3 sec.
• max: 15 min.±2 min.
• Sensor range: max. 15m
