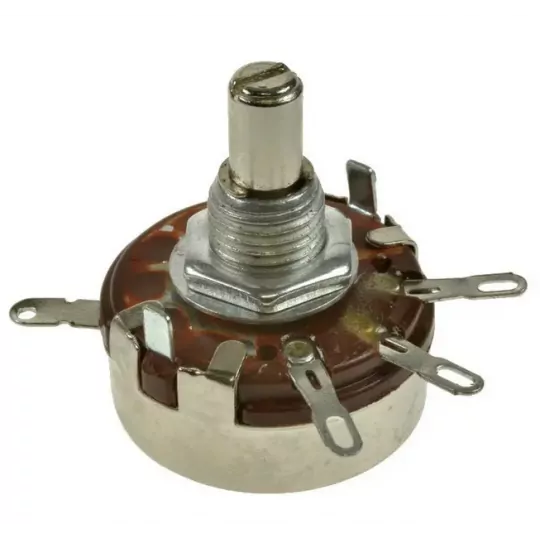

Axle potentiometer 1x470k WTH118 2W 059004

Product description

The potentiometer is designed to set the right amount of power for the needs of a particular device or installation. Products are excellent for use for modern industrial apparatus and automation. These are, for example, a service switch or a motor switch, which productively protects motors from unwanted damage. Axial or rotary potentiometer. The maximum working power of this device is as much as 2W. We invite you to purchase.

Technical data:

• Type of potentiometer single-turn; mono
• Symbol WTH118-1A 2W B470K
• Resistance 470kohm
• Linear characteristic
• Tolerance 20%
• Power 2W
• Diameter of potentiometers axis fi 6,00mm
• Length of potentiometer axis 20mm
• Material of potentiometer axis metal
• Surface of potentiometer axis smooth
• Number of turns / Rotation angle 270°
• Dimensions of the body fi 29x16mm
• Potentiometer series WTH118
• Carbon material
• Soldered electrical assembly
