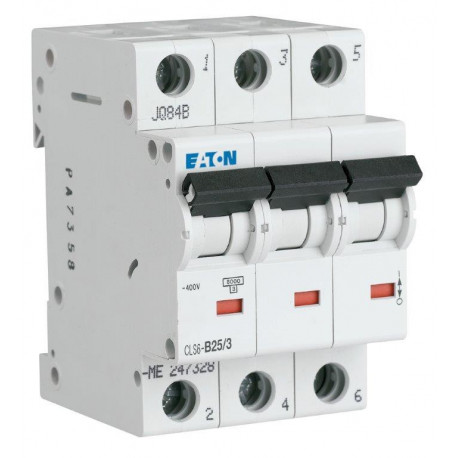

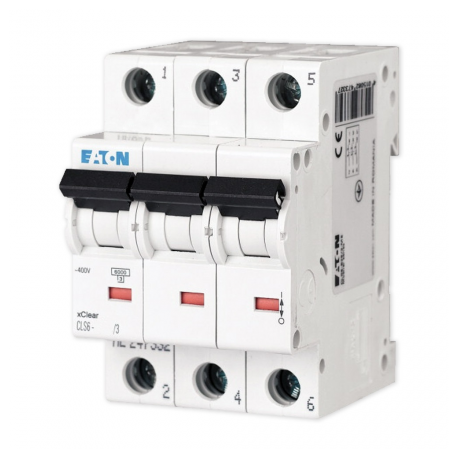

Overcurrent circuit breaker 3P B 25A CLS6 EATON

Product description

Anovercurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations, as well as household electrical appliances.

Eaton Electric is a company that manufactures modern overcurrent circuit breakers in a wide range of current ratings. They are used in residential and public buildings, as well as in industry.They protect electrical installations from the effects of short circuits and overloads. These products have a convenient elevator terminal system, which ensures the strong attachment of switching wires.They are matched for quick installation on a standard rail TS35 mm.

Technical data:

• Number of modules 18mm 3
• Characteristics B
• Rated current In 25 A
• Rated short-circuit switching capacity Icn 6 kA
• Rated voltage Un 230/400 V~
• Tripping indicator yes
• Mechanical endurance (number of cycles) 8000
• Mounting 35 mm rail (TH35/DIN)
• Connection method rail/wind terminal
• Max. cross-section of connecting wires 25 mm²
• Degree of protection IP20
• Device protrusion 60 mm (71 mm with lever)
• Dimensions (W × H × D) 52.5×80×76.5 mm
