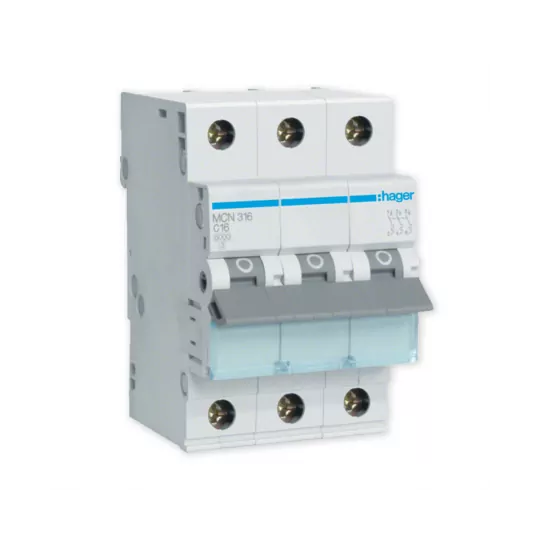

MCN316E Hager 3P C16A overcurrent circuit breaker

Product description

Anovercurrent circuit breaker is a component of an electrical installation whose function is to break the continuity of a circuit when the current exceeds the safe value for that circuit. The circuit breaker is designed to control and protect against the effects of overloads and short circuits of consumer circuits of installations, as well as electrical appliances in households.

The company's main features are innovation and systematic development of products and systems. The brand is associated with excellent quality and the pursuit of perfection. Invariably, new design patterns and improvements have been introduced over the years, surprising customers and fully meeting their expectations. While implementing innovations and new technologies, the company does not forget about interesting design. In its products, Hager guarantees simple installation, ease of use, intuitive interface, modular structure and durability. Components and solutions are manufactured at Hager's 23 production facilities around the world .

Technical data:

• Commercial designation MCN316E
• Product color white
• RAL color RAL 9001
• Type of overcurrent circuit breakers
• Number of poles 3P
• Characteristic C
• Rated current In 16 A
• Rated short-circuit breaking capacity Icn 6 kA
• Rated switching voltage Ue (AC) 230/400 V
• Rated frequency 50/60 Hz
• Rated insulation voltage Ui 500 V
• Electrical strength (number of cycles) 4000
• Mechanical strength (number of cycles) 20000
• Mounting 35 mm rail (TH35/DIN)
• Operating temperature -25°C ÷ +60°C
