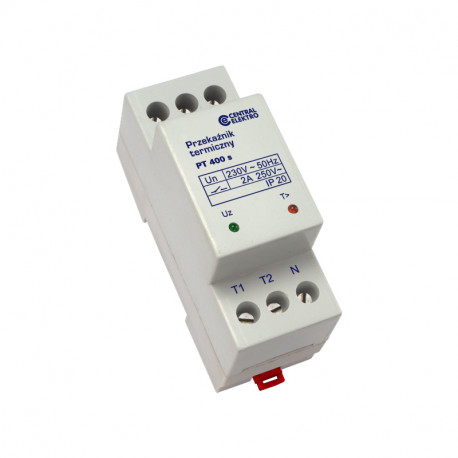

Thermal relay Pt-400s Central Elektro-Plast

Product description

Thermal relays are part of the electrical system.It is most often installed in large industrial motors as well as smaller household installations. Regulation of the relay works on the principle of a knob located on the face of the device. This is the simplest way to adjust the relay. Installation of the relay is in the manner of a screw terminal. This is a very simple mounting method, the only thing you will need is a screwdriver.

This is the most sensitive model of relay, so they are very good protection for your electrical devices. This guarantees even greater safety. Relays have a set max and minimum temperature range for the motor. If the given values are too high, the motor will automatically stop working. This prevents its overheating and permanent damage.

Technical data:

• Material : plastic
• Type : 1-phase
• Color: gray
• Current : 2A
• Voltage : 230V
• Protection class : IP 20
• Terminals : screwterminals
• Wire connectivity : 4.0mm²
• Safety and compliance marks : CE
• Dimensions : W 89.0mm H 60.0mm D 34.0mm
