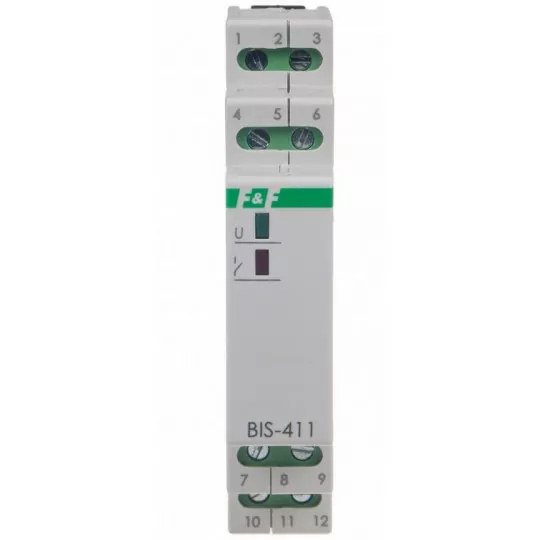

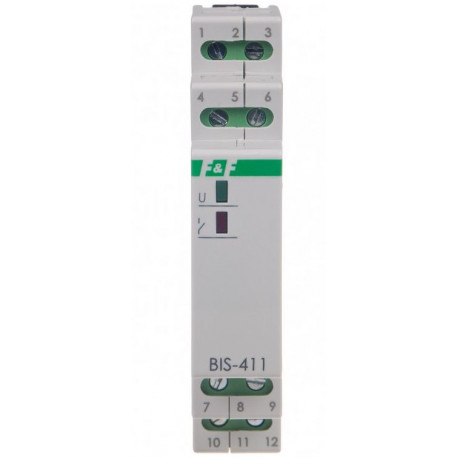

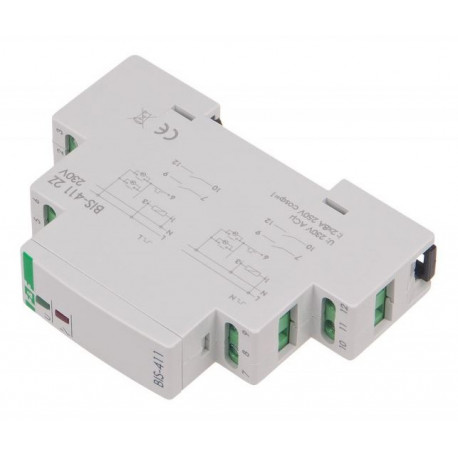

Pulse relay 230V AC 8A 2Z BIS-411 F&F

Product description

Pulse relay allows you to build groups of relays. It is much more durable thereby effective than ordinary fuses. The contact current given in the technical data is a maximum value and may be subject to limitations. If the information provided shows that the relay in the device is insufficient, it is recommended to use an external switching element (such as a contactor) suitable for switching large surge currents. The relay does not have a "memory" of the contact position. This means that when the power supply is switched on, the relay contact will always remain in the off state.

These types of fuses are used at the end or beginning of electrical installations in a single-family house, production halls or public premises. These fuses protect the entire circuit of the installation and connected equipment from sudden short circuits or surges. This model has a green LED which indicates the failure.

Technical data

• EAN: 5908312594567
• Function: electronic switch
• Number of NO contacts: 2
• Manual operation possible
• Control voltage 1 [V]: up to230
• Control voltage 1 [V]: from230
• Control voltage 2 [V]: from230
• Control voltage type 1: AC/DC
• Type of control voltage 2: AC
• Supply voltage type: AC/DC
• Mounting method: DIN rail
• Width expressed in number of modules: 1
• Supply voltage range [V]: up to230
• Supply voltage range [V]: from230
• Rated switching current [A]:16
