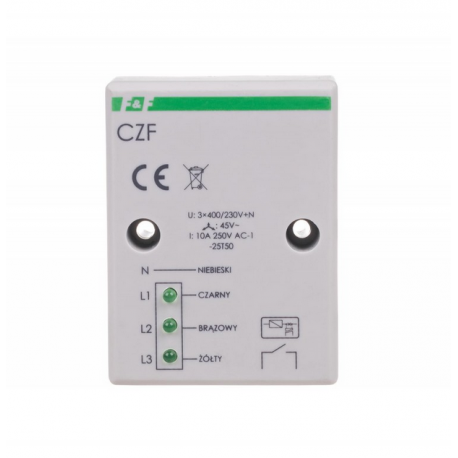

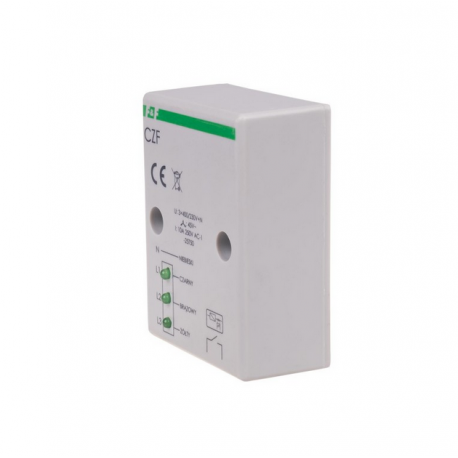

Phase loss and asymmetry sensor 1Z CZF F&F

Product description

The phase loss sensor is a device that monitors the phase voltage of motors or other equipment. With its help, you can try to run them in open phase conditions or in single-phase mode, thus eliminating motor burnouts. It works on the principle of phase voltage, which occurs in a three-phase system. It also protects against phase loss.

It works on the principle of protecting the motor from possible voltages in power cables. It detects the operating power of the equipment in question, when there is a phase loss in any of the three phase modes the wire loses or recharges power. A time delay of about 1.5 seconds has been introduced to eliminate the possibility of nuisance triggering.

Technical data:

• Supply voltage 3 × 400 V + N
• Cooperation with generators NO
• Phase loss / asymmetry control YES
• Phase sequence control NO
• Contactor contact control NO
• Executive element relay
• Maximum load current 10 A
• Contact configuration 1 × NO
• Contact separation YES
• Voltage asymmetry of trip 45V
• Voltage hysteresis 5V
• Switch-off delay 4 s
• Power supply monitoring 3 × green LED
• Connection OMY 4×1 mm²; 2×0.75 mm², l: 0.5 m
• Power consumption 1.6 W
• Operating temperature 25÷40°C
• Dimensions 51×67×26 mm (± 1 mm)
• Surface mounting
• Protection degree IP20
