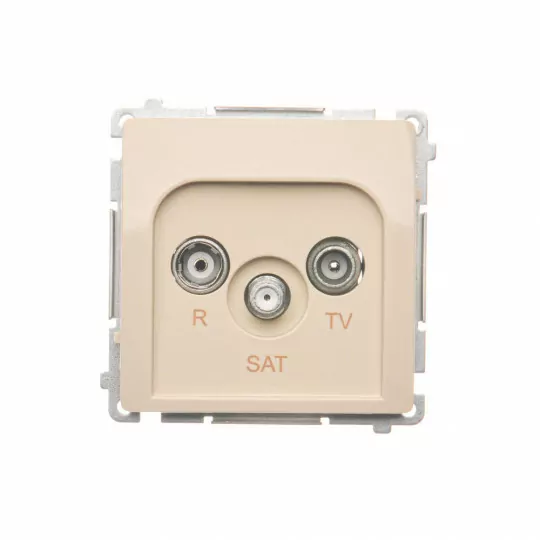

Antenna outlet R-TV-SAT terminal/terminal, attenuation 1dB beige SIMON

Product description

SIMON contact is a popular choice. It is a modern line of electro-installation accessories based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is beige in color and is made of the highest quality materials, so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

Technical data:

• Beige color
• Product type module
• Type of connection / Type of terminal plug, screw terminals
• Degree of protection IP20
• Frequency range 5-2400 MHz
• Attenuation at 860 MHz 1 dB
• Junction attenuation for 2150 MHz 2 dB
• ETIM class EC000439 Antenna socket
• Surface protection natural
• Surface finish glossy
• Mounting method [ETIM] flush mounting
• Mounting method claws / screws
• Product height 75 mm
• Product width 75 mm
• Depth of the product 41 mm
• Installation depth 29 mm
• Socket cover yes
