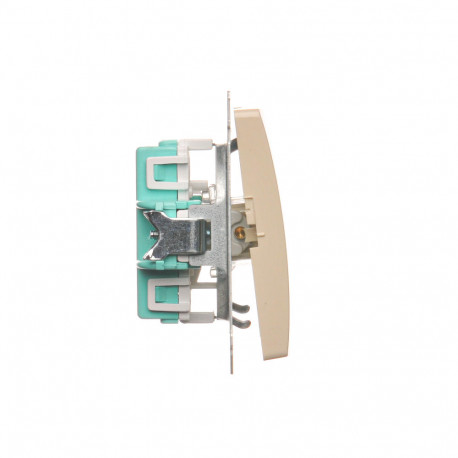

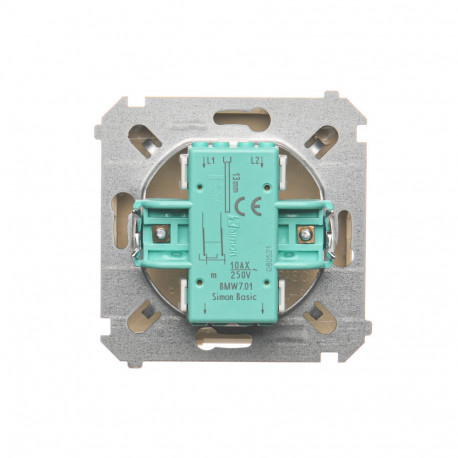

Basic Cross-connector BMW7.01/12 beige SIMON

Product description

SIMON switch is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is beige in color and is made of the highest quality materials, so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

Basic data:

• Series: Simon Basic
• Product name/type: cross-over switch
• Color: beige
• Product type: module
• Rated fluorescent current: 10 AX
• Rated voltage: 250 V
• Connection type / terminal type: screw terminals
• IP degree of protection: IP20/IP44
• To achieve IP44 splash-proof class, use a frame: BMR1B/...; BMR2B/...; BMR3B/....
• Backlighting: optional, not included

Details:

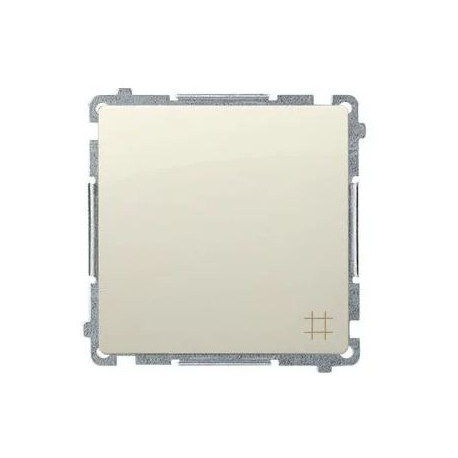

• Imprint/Pictogram: "cross" symbol.
• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 75 mm
• Product width: 75 mm
• Product depth: 41 mm
• Embedded depth: 24 mm
• Operation method/style: rocker key
• Number of keys/levers: 1
• Connection arrangement: Cross (bistable) switch.
