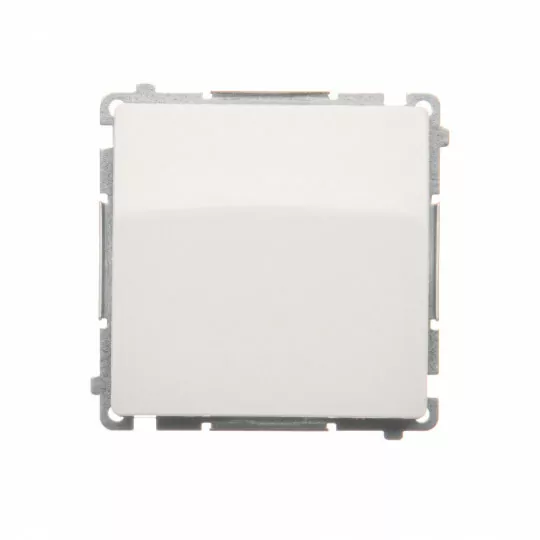

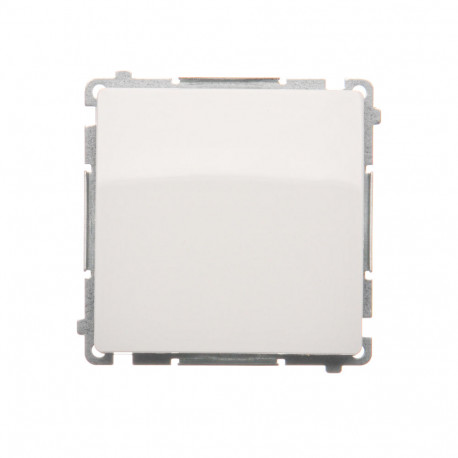

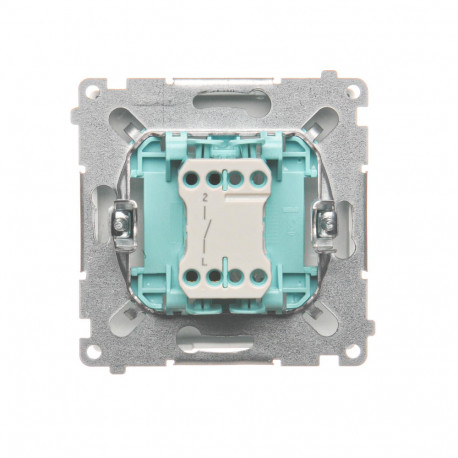

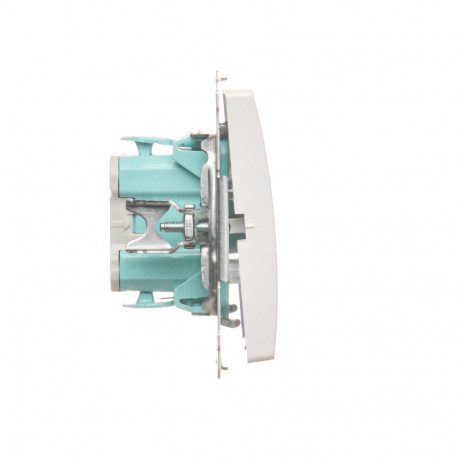

Basic Single switch BMW1.01/11 white SIMON

Product description

SIMON switch is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon solutions meet all these requirements while maintaining interior aesthetics. The product is white in color and was made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide choice of color range will allow you to create an aesthetically pleasing modular installation.

Basic data:

• Series: Simon Basic
• Product name/type: single-pole switch
• Color: white
• RAL (similar): RAL 9003
• Product type: module
• Rated current fluorescent 10 AX
• Rated voltage: 250 V
• Connection type / Terminal type: quick-connector
• IP degree of protection: IP20/IP44
• Notes: For IP44 splash-proof rating, use IP44 NEOS frame: BMRC1B/...; BMRC2B/...or IP44 STANDARD frame: BMR1B/...; BMR2B/...; BMR3B/....
• Illumination: optional, not included

Particulars:

• Imprint/Pictogram: none
• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 75 mm
• Product width: 75 mm
• Product depth: 41 mm
• Embedded depth: 24 mm
• Operation method/style: rocker key
• Number of keys/levers: 1
• Connection layout: 1-pole switch (bistable)
