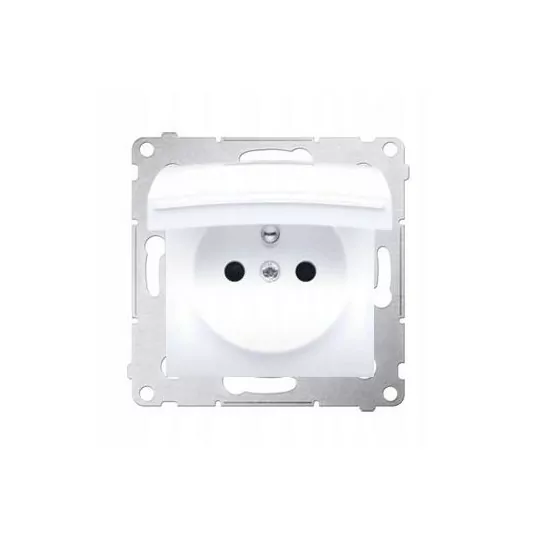

Basic 1gang grounded socket outlet BMGZ1B.01/11 white SIMON

Product description

SIMON contact is a popular choice. It is a modern line of electro-installation accessories based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is white in color and was made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide choice of color range will allow you to create an aesthetically pleasing modular installation.

Basic data:

• Series: Simon Basic
• Product name/type: single plug socket in IP44 version - cover color flap
• Color: white
• RAL (similar): RAL 9003
• Rated current: 16 A
• Rated voltage: 250 V
• Connection type / Terminal type: screw terminals
• IP degree of protection: IP44
• Notes: IP44 splash-proof when using frames: 1. splash-proof with gaskets: BMR1B/..., BMR2B/..., BMR3B/... or 2. BMR1/..., BMR2/..., BMR3/..., BMR4/..., BMR5/..., + additionally frame gasket - respectively: NU1, NU2, NU3, NU4, NU5.
• Number of modules: 1
• Frequency range: 50-60 Hz
• Number of units: 1

Details:

• Imprint/Pictogram: none
• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 75 mm
• Width of the product: 75 mm
• Product depth: 50 mm
• Installation depth: 28 mm
• Model: grounded, grounding pin
• Socket cover: center badge
• Flip cover: yes
• Special power supply: no special power supply
