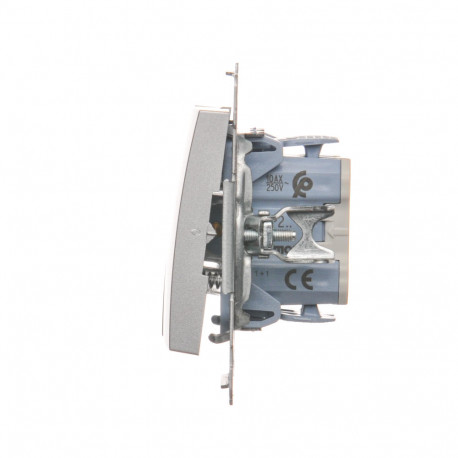

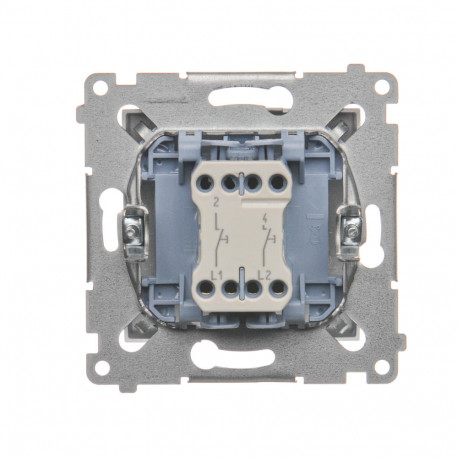

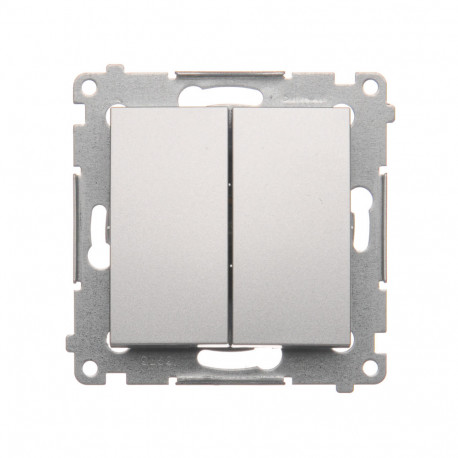

Simon54 double NO pushbutton DP2.01/43 silver

Product description

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon solutions meet all these requirements while maintaining the aesthetics of the interior. The product is made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Its long-standing presence on the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories.

Technical data:

• Simon 54 series
• Color matte silver, metalized
• Product type module
• Rated current fluorescent 10AX
• Rated voltage 250V
• Connection type / Quick connector terminal type
• Degree of protection IP20/IP44
• Notes For IP44 splash-proof rating, use a frame gasket
• Illumination optional, not included
• ETIM class EC000029 Button
• Type of material plastic, PC, halogen-free
• Surface protection lacquering
• Surface finish matte
• Mounting method [ETIM] flush mounting
• Mounting method claws / screws
• Height of the product 75mm
• Width of the product 75mm
• Depth of the product 41mm
• Built-in depth 26mm
