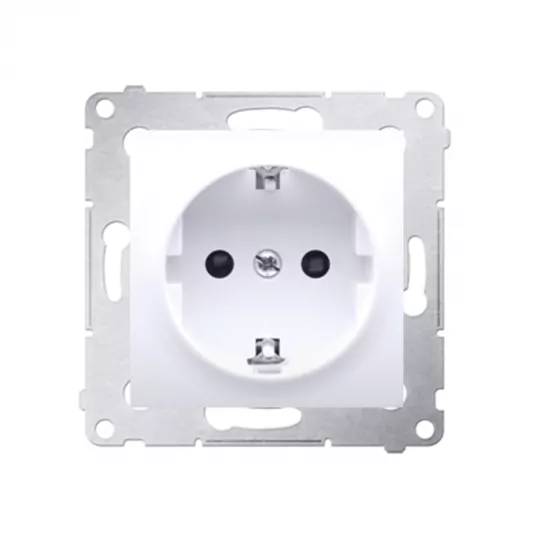

Simon54 Socket z/u schuko duel DGSz1Z.01/11 white

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is white in color and was made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Its long-standing presence on the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories.

Basic data:

• Series: Simon 54
• Product name/type: Schuko type single grounded plug socket with current path coverings
• Color: white
• RAL (similar): RAL 9003
• Product type: module
• Rated current: 16 A
• Rated voltage: 250 V
• Connection type / terminal type: screw terminals
• IP degree of protection: IP20
• Number of modules: 1
• Frequency range: 50-60 Hz
• Number of units: 1
• Current hole apertures: yes

Details:

• Imprint/Pictogram: none
• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: screw
• Product height: 75 mm
• Product width: 75 mm
• Product depth: 42.5 mm
• Embedded depth: 31.5 mm
• Model: grounded, Schuko
• Socket cover: center badge
• Tilt flap: no
• Special power supply: no special power supply
• Application: for Nature frames, for premium frames
