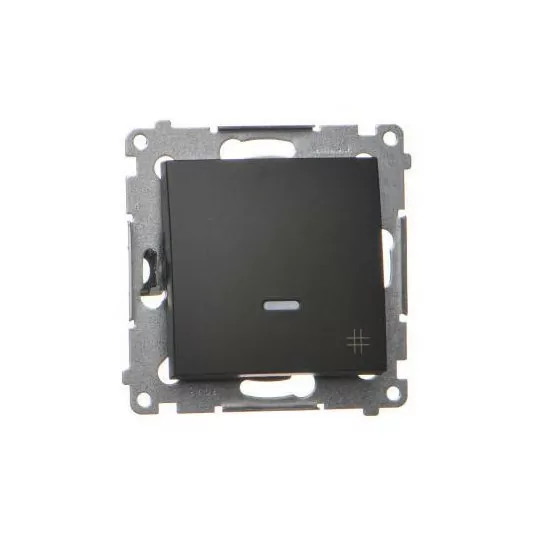

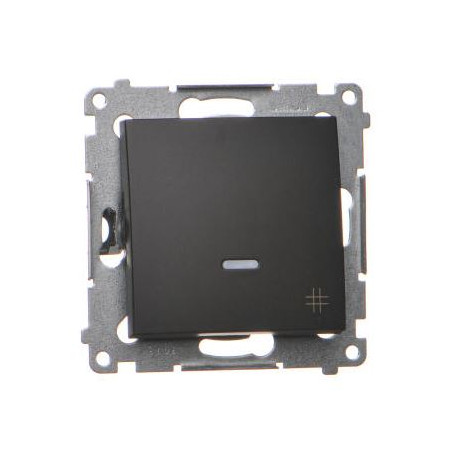

Simon54 Illuminated cross switch DW7L.01/49 black

Product index: 0001-00014-51406
Price (with Tax.)
PLN43.15
26 qty.
Remaining order amount to obtain free shipping PLN0.00
Order within 10 hours 43 min. and we will ship tomorrow

Ask about product

* Required fields

14 days to return

Free shipping from 499 PLN

Ask a question +48 536 969 696

Technical information

Switches and sockets
Cross connectors
Material
Plastic
Color
Black

Product description

ContactSIMON54 is a popular choice because it is a modern line of wiring accessories based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the offer of this manufacturer you will find all the elements of wiring accessories you will need. Universal design allows easy, fast and safe installation.

✅ Technical data:

  • Product name/type LED illuminated cross switch
  • Color matte black
  • Product type module
  • Rated current fluorescent 10 AX
  • Rated voltage 250 V
  • Type of connection / Type of quick-connector terminal
  • Degree of protection IP 20/IP44
  • Notes To achieve IP44 splash-proof rating, use a frame gasket
  • Backlighting built-in, orientation, LED replaceable, color: blue
  • Imprint/Pictogram "cross" symbol
  • Type of material plastic, PC, halogen-free
  • Surface protection lacquering
  • Surface finish matte
  • Mounting method [ETIM] flush mounting
  • Mounting method claws / screws
  • Product height 75 mm
  • Width of the product 75 mm

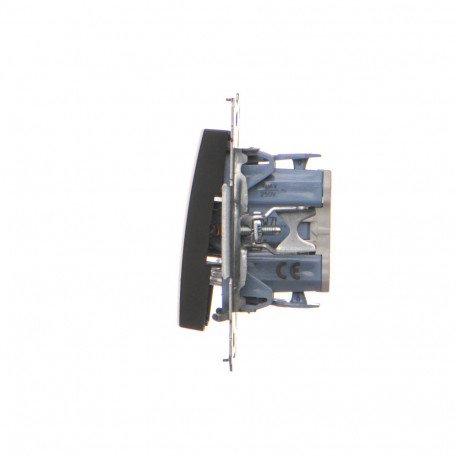

  • Depth of the product 41 mm
  • Installation depth 26 mm
  • Operating method/action rocker key
  • Number of keys/levers 1

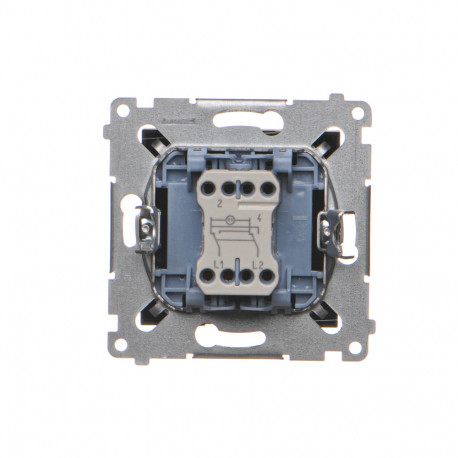

  • Circuitry Cross-over switch (bistable)
