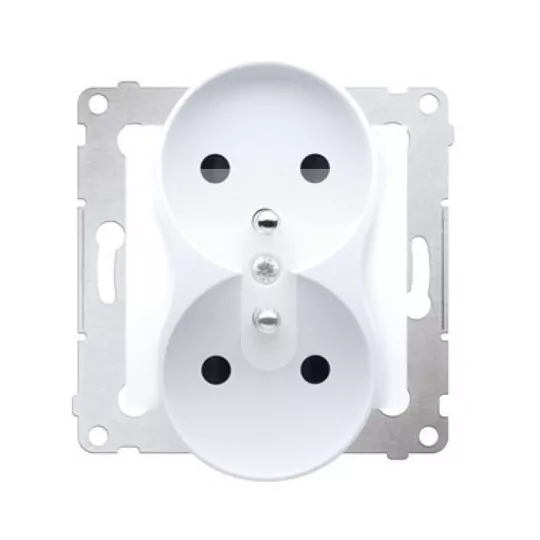

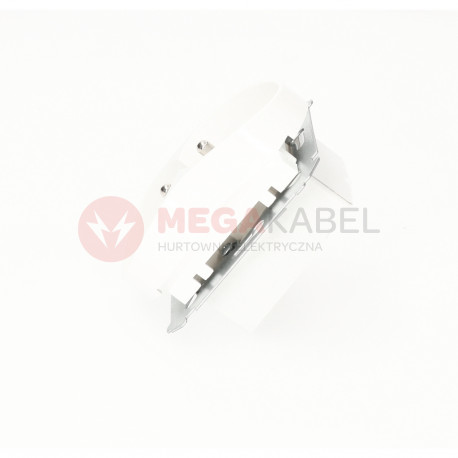

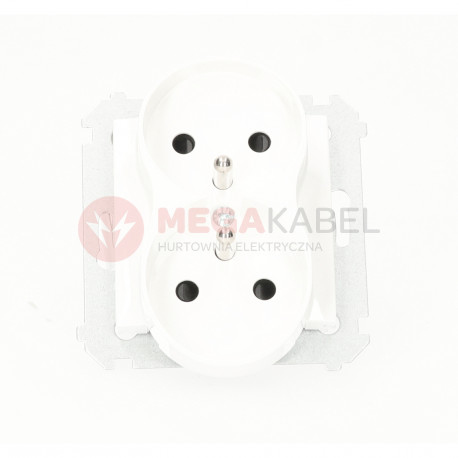

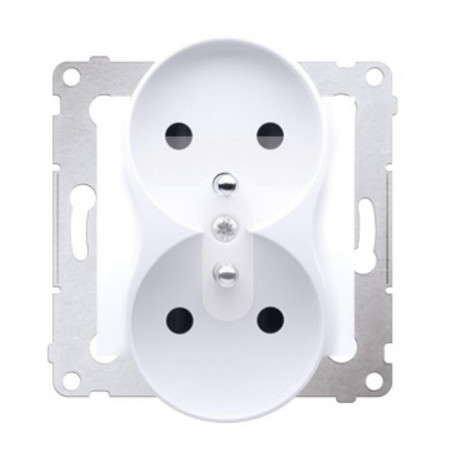

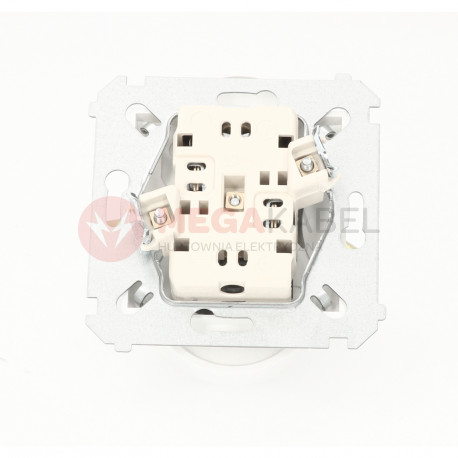

Simon54 Nature Socket-2 DGZ2MZN.01/11 white

Product description

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon solutions meet all these requirements while maintaining interior aesthetics. The product is white in color and was made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

THE SOCKET IS COMPATIBLE ONLY WITH ITS ASSOCIATED SERIES OF MOUNTING FRAMES SIMON NATURE.

Basic data:

• Series: Simon 54 Nature
• Product name/type: double grounded plug socket with cover plates - for NATURE frames
• Color: white
• RAL (similar): RAL 9003
• Product type: module
• Rated current: 16 A
• Rated voltage: 250 V
• Connection type / terminal type: screw terminals
• IP degree of protection: IP20
• Notes: Fits only to Simon54 NATURE frames.
• Number of modules: 1
• Frequency range: 50-60 Hz
• Number of units: 2
• Current hole apertures: yes
• Dedicated to: Simon54 NATURE frames

Details:

• Imprint/Pictogram: none
• Material type: plastic, PC, halogen-free
• Surface protection: natural
• Surface finish: glossy
• Mounting method [ETIM]: flush mounting
• Mounting method: claws / screws
• Product height: 81 mm
• Product width: 75 mm
• Product depth: 46 mm
• Embedded depth: 20 mm
• Model: grounded, grounding pin
• Socket cover: central badge
• Tilt flap: no
• Special power supply: no special power supply
