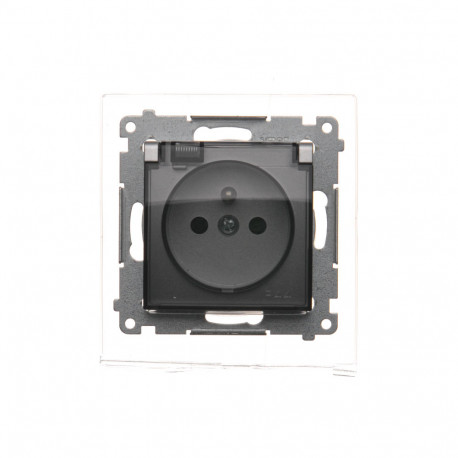

Simon54 Single plug socket IP44 - flap DGZ1BZ.01/43A silver

Product description

SIMON 54 contact is a popular choice. It is a modern line of electro-installation equipment based on new, reliable and installation-friendly mechanisms, distinguished by its noble form and rich colors. The color palette of frames and keys was selected to match each other in any color combination. In the Simon series offer you will find all the elements you need to create a complete and aesthetically pleasing installation. The universal design allows easy, fast and safe installation in both single and multiple frames. Many elements have the ability to be mounted horizontally as well as vertically.

Indoors, we surround ourselves with an increasing number of electrical devices and objects. They should be convenient, safe and tailored to your needs, as well as energy-efficient and environmentally friendly. Kontakt-Simon's solutions meet all these requirements while maintaining interior aesthetics. The product is silver in color and is made of the highest quality materials so it is resistant to damage and will serve you for many years. A wide range of colors will allow you to create an aesthetically pleasing modular installation.

CONTACT SIMON enjoys the trust of customers in most countries of the European Union. It primarily manufactures wiring accessories: sockets, switches, floor boxes and practical electronic components. Its long-standing presence on the market, as well as the commitment of its qualified employees, ensures the high quality of the offered accessories.

Basic data:

• Series: Simon 54
• Product name/type: single plug socket for IP44 version - with gasket for Premium frames - flap in transparent color
• Color: silver matte, metalized
• Product type: module
• Rated current: 16 A
• Rated voltage: 250 V

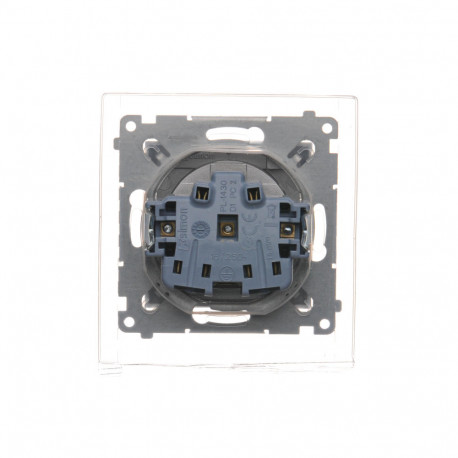

• Connection type / terminal type: screw terminals
• IP degree of protection: IP44

Particulars:

• Imprint/Pictogram; none
• Material type: plastic, PC, halogen-free
• Surface protection: lacquering
• Surface finish: matte
• Mounting method [ETIM]; flush mounting
• Mounting method; claws/screws
• Product height; 89 mm
• Width of the product; 84 mm

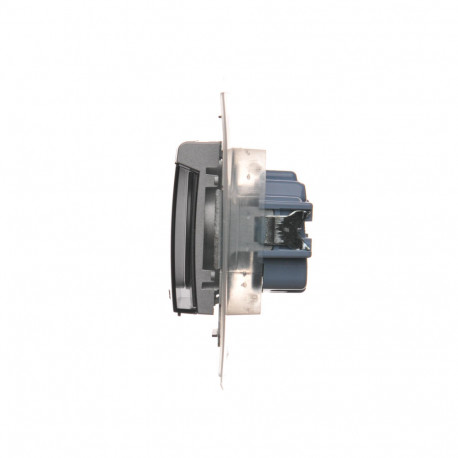

• Depth of product; 45 mm
• Depth of built-in; 29 mm
• Model; grounded, grounding pin
• Socket cover central badge
• Flip cover; yes
• Special power supply; no special power supply
• Use for premium frames
