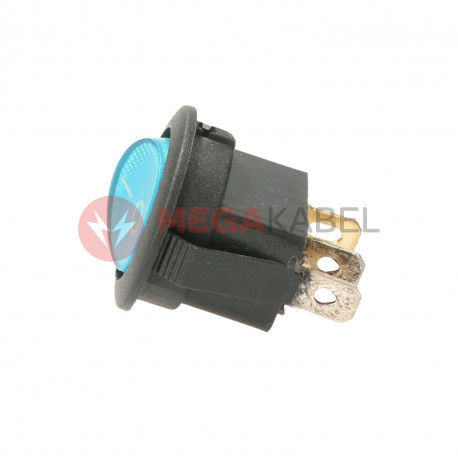

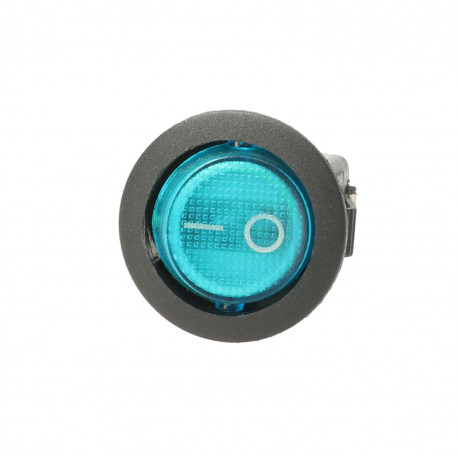

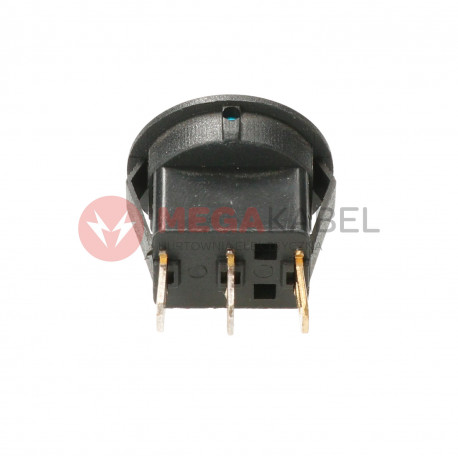

Blue illuminated rocker switch 230V ORNO

The cradle switches are designed to switch standard 230 VAC mains voltage . It is a pushbutton that uses the function of switching devices on and off with the help of an alloy cast in the shape of a cradle. On a daily basis, we use such switches to turn on and off, for example, a bedside lamp. The blue OFF-ON switch can be easily installed to any device or structure being created, if the current parameters are met.

Technical data:

• Resistance of shorted contacts: 35mΩ max.
• Resistance of opened contacts: 500VDC 100MΩ min.
• Dielectric strength of the housing: 1500VAC 60sec.
• Operating temperature range: -30ºC - +80ºC
• Durability: 10000 cycles
